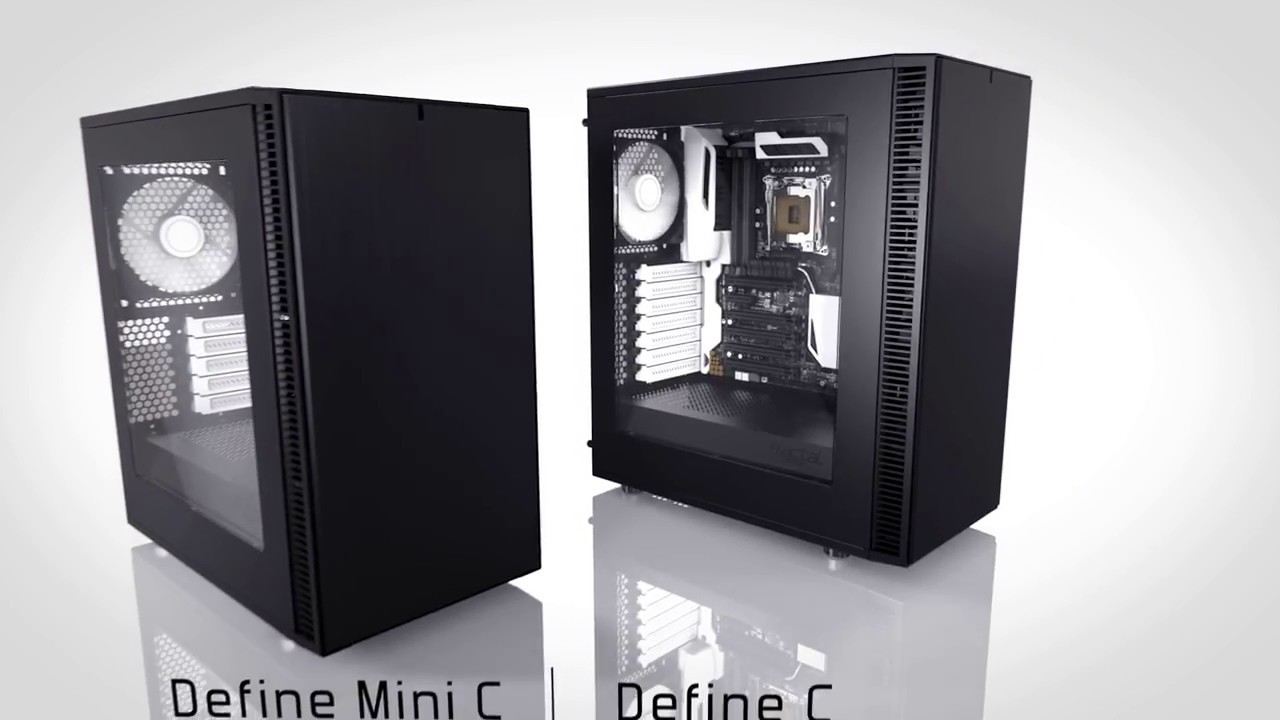

Define Mini C

比普通Micro ATX主板更小，Define Mini C拥有最优化的内部结构，可以为用户提供完美的机箱空间。敞开式设计在确保静音的情况下，可以让气流无阻碍地穿过所有管件零件，提高电脑性能

  • Define系统隔音材料，采用ModuVent™技术，工作静音，适合小尺寸Micro ATX主板
  • 针对大风量和静音工作进行优化

Variation

View specifications
寻找经销商

独特的创新设计，Define Mini C 让你体验极致美学

机箱同时提供风冷和水冷方案，即使电脑功率再大也能确保有效散热。Define Mini C采用Define系列机箱标志性的前面板设计，大量使用隔音材料，同时顶部面板采用了ModuVent通风技术。如果您需要移除ModuVent来安装更多的风扇或散热器，还可以在原来的位置安装新的磁性滤尘器。内置线罩可以让走线更加整洁美观。

主要性能

  • Define系统隔音材料，采用ModuVent™技术，工作静音，适合小尺寸Micro ATX主板

  • 针对大风量和静音工作进行优化

  • 侧面板和前面板使用了工业级的隔音材料

  • 灵活的存储空间选择，可支持最多5个硬盘

  • 预装两台 Fractal Design Dynamic X2 GP-12 120 mm风扇，在保持低噪音水平的情况下提供最大风量

主要性能

  • 带有5个PCI扩展插槽，可安装性能强劲的双显卡

  • 内部采用开放式设计，使气流从前到后畅通无阻

  • 清洁简单的大风量尼龙过滤器，全PSU覆盖，可以从前方取出，简单方便

  • 可选顶部过滤器，防止为安装更多风扇而取下ModuVent后造成的灰尘堆积

  • 提供线罩可隐藏多余的走线，使机箱内部看起更加整洁美观，同时有利于散热

灵活的存储空间选择，可支持最多5个硬盘

可选顶部防尘网，防止为安装更多风扇而取下ModuVent后造成的灰尘堆积

带有5个PCI扩展插槽，可安装性能强劲的双显卡

评测

Language Active language flag
“Sound-dampening materials, a top ModuVent, versatile radiator compatibility, a hidden PSU compartment and a design free of unnecessary frills. Define C ticks all those boxes and serves as a smaller, more affordable alternative to the trendsetting Define R5.”
Hexus 阅读更多
“Once you have selected a decent Micro-ATX motherboard you can install a high level of gaming hardware. Or head in the opposite direction and build a compact integrated PC, perhaps based around Core i3 or AMD APU.”
Kitguru 阅读更多
“The Fractal Design Define C is not simply a more compact version of the Define S, but an evolution of it that enables its smaller size, so that one could even go as far as to say that each of the two has its own target audience and purpose.”
TechPowerUp 阅读更多

Specifications

  • 3,5" HDD positions
    2
  • 2,5" HDD/SSD positions
    3 (maximum 2.5" drive thickness is 10mm)
  • Expansion slots
    5
  • Front ports
    2x USB 3.0, Audio in/out, Power button with LED, HDD activity LED, Reset button
  • Total fan mounts
    6
  • Front fan
    3x 120 mm or 2x 140 mm (1x Fractal Design Dynamic X2 GP12 fan included)
  • Top fan
    2x 120/140 mm
  • Rear fan
    1x 120 mm (1x Fractal Design Dynamic X2 GP12 fan included)
  • Bottom fan
    1x 120 mm
  • Dust filters
    Bottom fan + PSU, Front fans, Top panel (optional)
  • Cable routing grommets
    Yes
  • Fixed velcro straps
    Yes
  • Captive thumbscrews
    Both side panels, SSD brackets
  • Left side panel
    Industrial sound-dampened steel
  • Right side panel
    Industrial sound-dampened steel

Compatibility

  • Power supply type
    ATX
  • Motherboard compatibility
    Micro ATX, ITX
  • Front radiator
    280, 240, 140 and 120 mm, max width 144 mm
  • Top radiator
    240 and 120 mm, max component height on motherboard 40mm
  • Rear radiator
    120 mm, max width 125 mm
  • PSU max length
    175 mm
  • GPU max length
    315mm in length with front fans mounted
  • CPU cooler max height
    170 mm
  • Cable routing space
    15 - 35 mm

Dimensions

  • Case dimensions (WxHxD)
    210 x 399 x 399 mm
  • Case dimensions - with feet/protrusions/screws
    210 x 412 x 413 mm
  • Net weight
    6.9 kg
  • Package dimensions (WxHxD)
    290 x 484 x 502 mm
  • Package weight
    8.3 kg
  • Volume
    33.4 liters

Other

  • Package contents
    Define Mini C computer case, User manual, Accessory box, Optional top filter
  • EAN
    7350041084327
  • UPC
    817301014328
  • Product code
    FD-CA-DEF-MINI-C-BK
  • Additional information
    Also available for System Integrators
