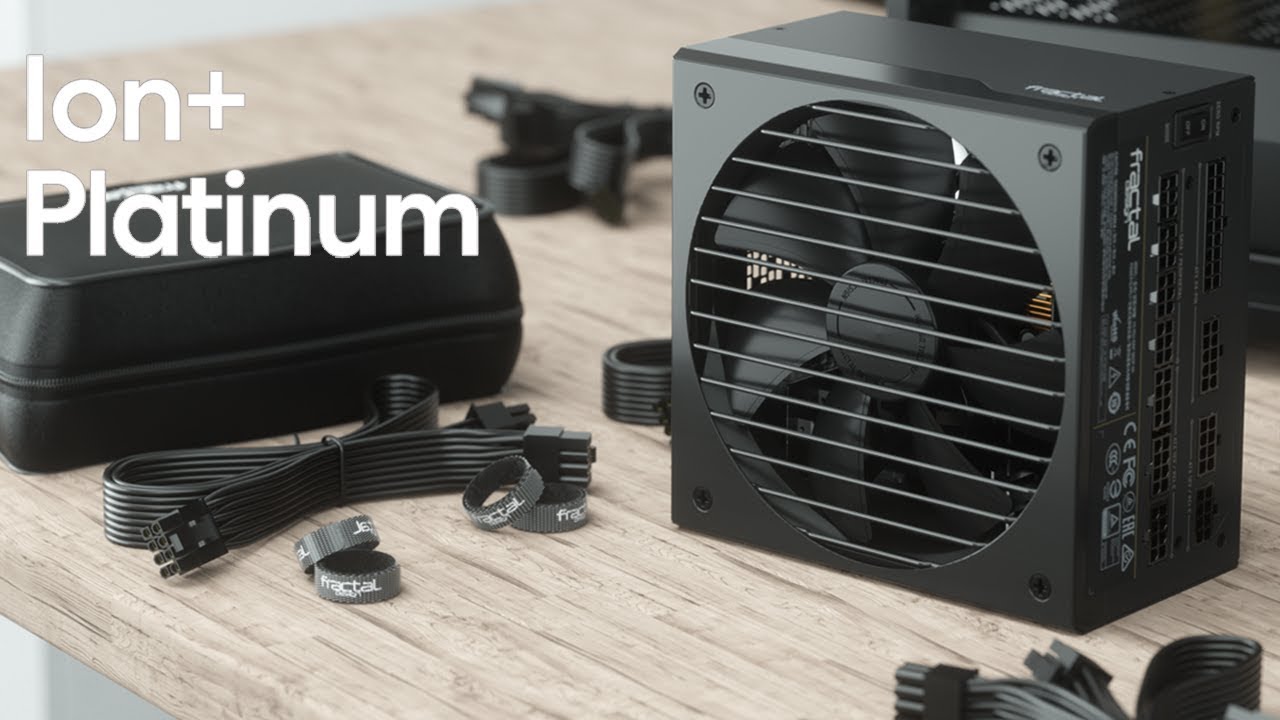

Ion+ 白金 860W

Ion+ 白金是一款高性能全模块化的PSU，具有低噪音操作、强化的电缆灵活性和优异的输出质量等特点。

  • Fractal Design UltraFlex直流电线的灵活度令人耳目一新，可轻松不费力进行电缆布线与连接器弯折，契合您的安装，一点都不麻烦

Variation

View specifications
寻找经销商

高性能全模块化

用户可选择半被动零转速模式，在轻度负载条件之下，维持纯静音操作，而在重度使用之时，定制的140mm风扇和FDB轴承几乎不会发出噪音。革命性的UltraFlex电缆，具有超高股数的电线和特殊绝缘弯曲和扭曲性，可轻松进行安装和电缆布线。

Ion+目前有560、660、760和860瓦选项，均具有80plus®Platinum效率，提供10年质保，提供一套完整的电气保护套件，让您放心使用。

主要特色

  • Fractal Design UltraFlex直流电线的灵活度令人耳目一新，可轻松不费力进行电缆布线与连接器弯折，契合您的安装，一点都不麻烦

  • 配备定制Fractal Design的Dynamic系列140 mm风扇，具有极低速度和真正耐用的FDB轴承

  • 80PLUS® Platinum效率可优化电气性能，减少热量产生

  • 使用者可选择零转速模式，在低负载下进行低噪音的被动操作，或低转速风扇运转来进行冷却

  • 输出质量卓越，电压调节紧密，噪音和纹波极低

优质的日本105°C电容器，提供更高的可靠性和耐用性

Fractal Design UltraFlex直流电线的灵活度令人耳目一新，可轻松不费力进行电缆布线与连接器弯折，契合您的安装

使用者可选择零转速模式，在低负载下进行低噪音的被动操作，或低转速风扇运转来进行冷却

主要特色

  • 全模块化设计，可减少杂乱，有最大限度的简化安装

  • 优质的日本105°C电容器，提供更高的可靠性和耐用性

  • 紧凑型，深150 mm，轻易契合紧凑空间，具有额外的电缆管理空间

  • 过功率保护、过压保护、短路保护、欠压保护、过流保护和过温保护

  • 超长600 mm 24针ATX电缆和700 mm 4 + 4针电缆

  • 10年质保

评测

Language Active language flag
"If one thing came to mind when looking at the Ion+ series, it's value. £124.99 for an 860W 80+ Platinum rated power supply is a great deal, and there is nothing that we see that compromises this view."
Overclock3D.net 阅读更多
"…with excellent efficiency across the board and reasonable ripple suppression. Temps and noise are also amongst the best we have seen, and Fractal has the confidence to back it up with a 10-year warranty."
Hexus.net 阅读更多
“In terms of all of our testing as a whole, the Fractal Design Ion+ 860 performed fantastically. It was efficient, beyond the means required of the rating. It delivered the power amazingly well and, above all, it did it’s job without any fuss or drama.”
eTeknix.com 阅读更多

Specifications

  • 80 PLUS® Certification
    Platinum
  • Modular cables
    Fully modular
  • Cable type
    Modular 24-pin: Braided sleeve UltraFlex wire. Others: Flat UltraFlex wire
  • Fan type
    Customized 140 mm FDB bearing Fractal Design Dynamic Series fan
  • Maximum operating temperature at full load
    50°C
  • Semi-passive operation
    Yes, user selectable (Zero RPM)
  • Sleep State Compliance
    C6/C7
  • Warranty
    10 years
  • Capacitors
    Japanese
  • Protection features
    Over voltage protection. Under voltage protection. Over power protection. Short circuit protection. Over current protection. Over temperature protection
  • Approvals & Certifications
    CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
  • Life expectancy (MTBF) at max output load
    100,000 hours
  • Input voltage
    100-240V AC
  • Input frequency
    50-60 Hz
  • Input current
    10A/5A
  • Number of 12V rails
    1
  • PSU specification compliance
    ATX12V 2.4 / EPS12V 2.92
  • Standby efficiency
    ErP 2013 (<0.45W @230. VAC, 45 mA load on +5Vsb)
  • Unit measurements
    150 x 150 x 86 mm
  • Unit weight (unit only)
    1.665 kg

Connectors

  • ATX 24-pin
    1
  • ATX12V 4+4 pin / EPS12V 8-pin
    2
  • PCIe 6+2 pin
    6
  • SATA
    10
  • Peripheral
    4

Cable configuration (length between connectors)

  • ATX 24-pin
    600 mm
  • ATX12V 4+4 pin
    700 mm
  • EPS12V 8-pin
    600 mm
  • PCIe 6+2 pin
    550+120 mm x2
  • SATA
    400+120+120+120 mm & 650+120 mm
  • Peripheral
    400+120+120+120

DC output

  • 3.3 V
    22 A
  • 5 V
    22 A
  • 3.3 V and 5 V combined
    120 W
  • 12 V
    71.6 A
  • -12 V
    0.3 A
  • 5 V Standby (+5 Vsb)
    3 A
  • Total Power
    860 W

Other

  • Package content
    Ion+ PSU with protective bag, Modular cables in a convenient storage bag, Screw pack with Velcro cable ties, AC power cord (localized), User manual
  • Package dimensions (W x H x D)
    325 x 110 x 210 mm
  • Package weight
    2.975 kg
  • EAN
    7340172701927
  • UPC
    843276101923
  • Product code
    FD-PSU-IONP-860P-BK
