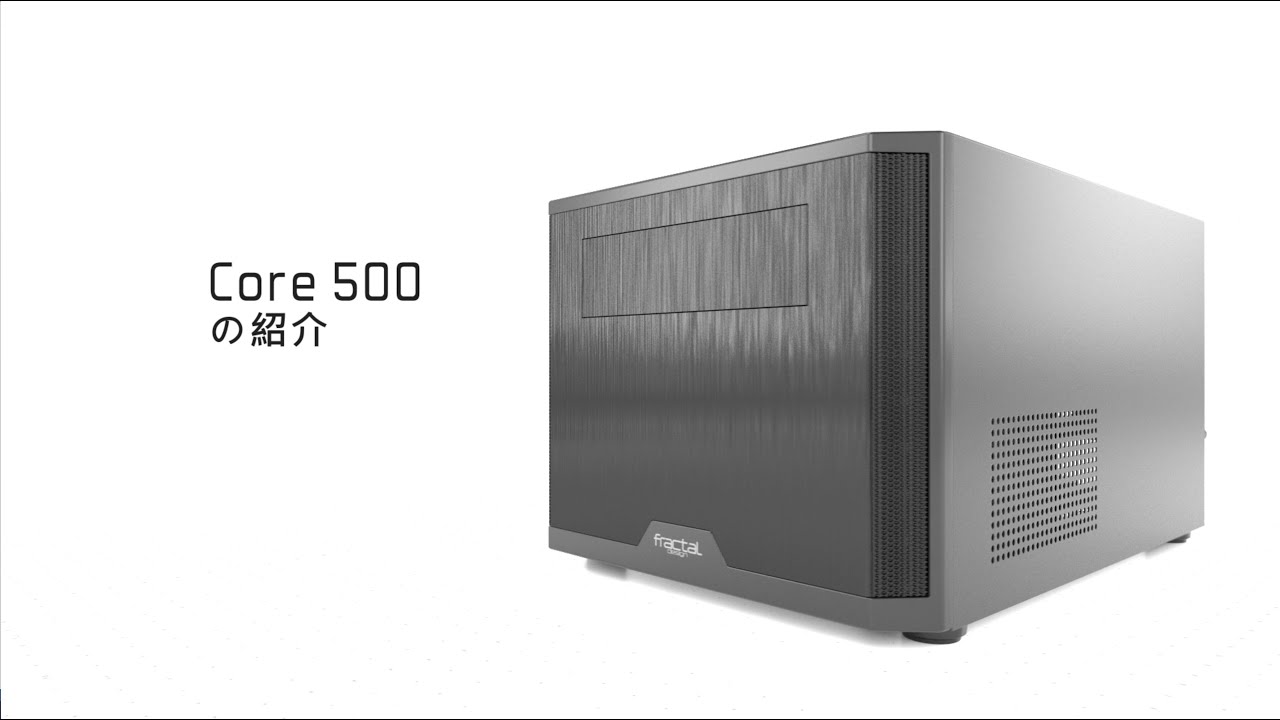

Core 500

Fractal Design Core 500は、PCに搭載するコンポーネントの選択においても妥協をせずに環境を構築することできる様な小型でコンパクトなシャーシをお探しの方に最適の PC ケースです。

  • なめらかで立体的な手触りを持つ艶消しアルミニウム前面パネル
  • 19.5リットルという非常に小型・コンパクトなケース

Variation

View specifications

Core 500

Core 500には優れた冷却機能を提供する Silent Series R3 140mmファンが1つ搭載されており、更に冷却機能を拡張したいとお考えの場合には、2つの140 mmケースファン、最大280 mmの水冷却ラジエーターを追加で搭載する事が可能です。CPUファンは、最大170mmの高さまでの製品が設置可能です。

19.5 リットルのコンパクトなケースシャーシにも関わらず、Core 500には1つのODDベイ、3つの3.5インチドライブ、3つの2.5インチドライブが設置することが出来、ケースの隅々まで使用する事が可能です。

主な特徴

  • なめらかで立体的な手触りを持つ艶消しアルミニウム前面パネル

  • 19.5リットルという非常に小型・コンパクトなケース

  • シャースサイズに適した非常に優れた水冷製品をサポート。最大280mmラジエーターに対応

  • スマートなデザインによるドライブベイ配置により、3つの3.5インチドライブ、3つの2.5インチドライブ、および1つの 5.25インチドライブを同時に設置可能

  • Mini-ITX マザーボード、ATX 電源に対応。長さ310mmまでのグラフィックス カードをサポート

  • シャーシ上部と側面の吸気口に設置された大きな磁気フィルターと PSU フィルターにより、シャーシ内部を埃のない状態に維持

  • 最大で170mmの高さのCPUタワー冷却装置をサポート

  • 優れた冷却性能をもつFractal Design Silent Series R3 140mm後部排気ファンを搭載

Language Active language flag
"Striving to be smaller than your average PC but staying just large enough to accommodate common components, Core 500 is well-put together and logically laid out so as to accept a powerful CPU and GPU combination, as well as up to half-a-dozen SSDs/HDDs."
"The Fractal Design Core 500 looks like a simple case but it is more sophisticated and subtle than it first appears.[...]Fractal Design has delivered a cheap and versatile Mini-ITX case."
"At a price tag of around 60 US dollars, the chassis is really affordable, but of great build quality. The interior—albeit very traditional for a chassis of this shape—is functional. Considering you will always have to make compromises when installing liquid cooling into a case as this, Fractal Design's Core 500 manages to avoid all restrictive issues outside of its sheer size with the exception of the PSU's length. With the ability to install six hard drive and an ODD while opting for a potent, large, and quiet air-cooling solution, the chassis has a lot to offer, coming in at a price/performance/quality ratio that is better than with most of the competition out there."

Specifications

  • Motherboard compability
    Mini ITX, Mini DTX motherboard compatibility; NOTE: motherboards with SATA ports that are angled 90 degrees may conflict with installation in the case.
  • Expansion slots
    2
  • 3.5" HDD Positions
    3
  • 2.5" HDD Positions
    3
  • 5.25" Bay
    1 (removable)
  • CPU Cooler height
    Up to 170 mm
  • ATX PSU size
    Up to 170 mm in length (non modular PSUs); ATX PSUs, up to 160 mm in length (modular PSUs)
  • Graphic card size
    Up to 310 mm in length (note: graphics cards longer than 170 mm will not fit with PSUs that exceed 170 mm)
  • Volume
    18,6 litres
  • Dimensions (WxHxD)
    250 x 203 x 367 mm
  • Case dimensions - with feet/screws/protrusions
    250 x 213 x 380 mm
  • Net weight
    4.4 kg
  • Package dimensions (WxHxD)
    285 x 335 x 450 mm
  • Package weight
    5.3 kg
  • Front interface
    2 x USB 3.0, Audio in/out, Power button with LED (white), HDD activity LED (white) & Reset button

Cooling system

  • Rear
    1 x 120/140 mm fan (included is 1 Fractal Design Silent Series R3 fan, 1000 RPM speed)
  • Top
    2 x 120/140 mm fan (not included)
  • Water cooling top (note: not compatible with AIO water cooler units that feature the pump on the radiator):
    280, 240, 140 and 120 mm radiators. (Thickness limitation of 100 mm for both radiator + fan) (240 and 280 mm radiators require removal of the ODD bay) (280 mm radiator can be maximum 325 mm in length)
  • Water cooling rear
    120 mm radiator (not compatible with the rear 3.5" HDD position)
  • Dust filters
    Magnetic filters on side and top panel, PSU filter

Package contents & other

  • Package contents
    Core 500 computer case, user manual and accessory box
  • EAN/GTIN-13
    7350041082644
  • UPC
    817301012645
  • Product code
    FD-CA-CORE-500-BK
  • Available for system integrators
    Yes
