COMPUTER CASE

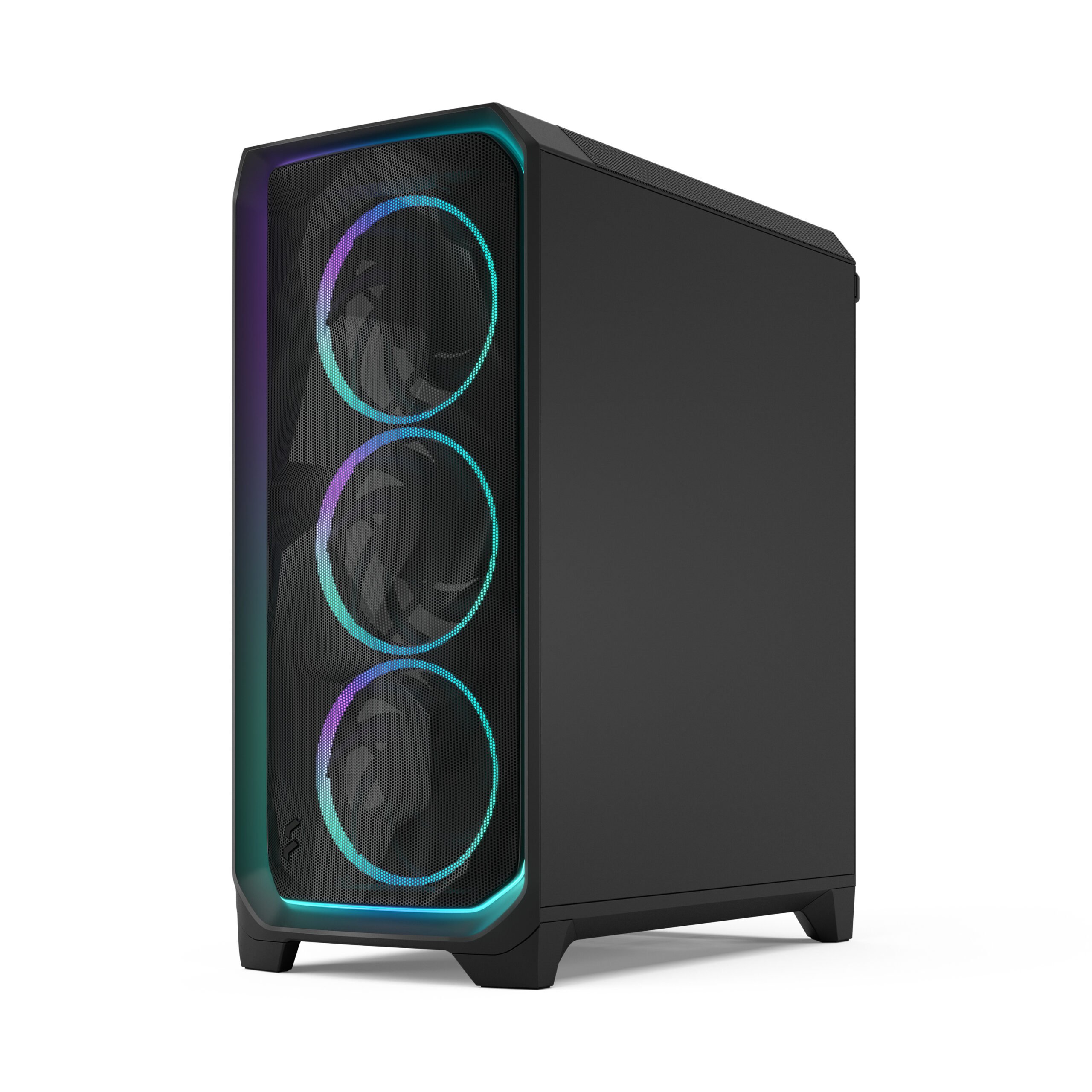

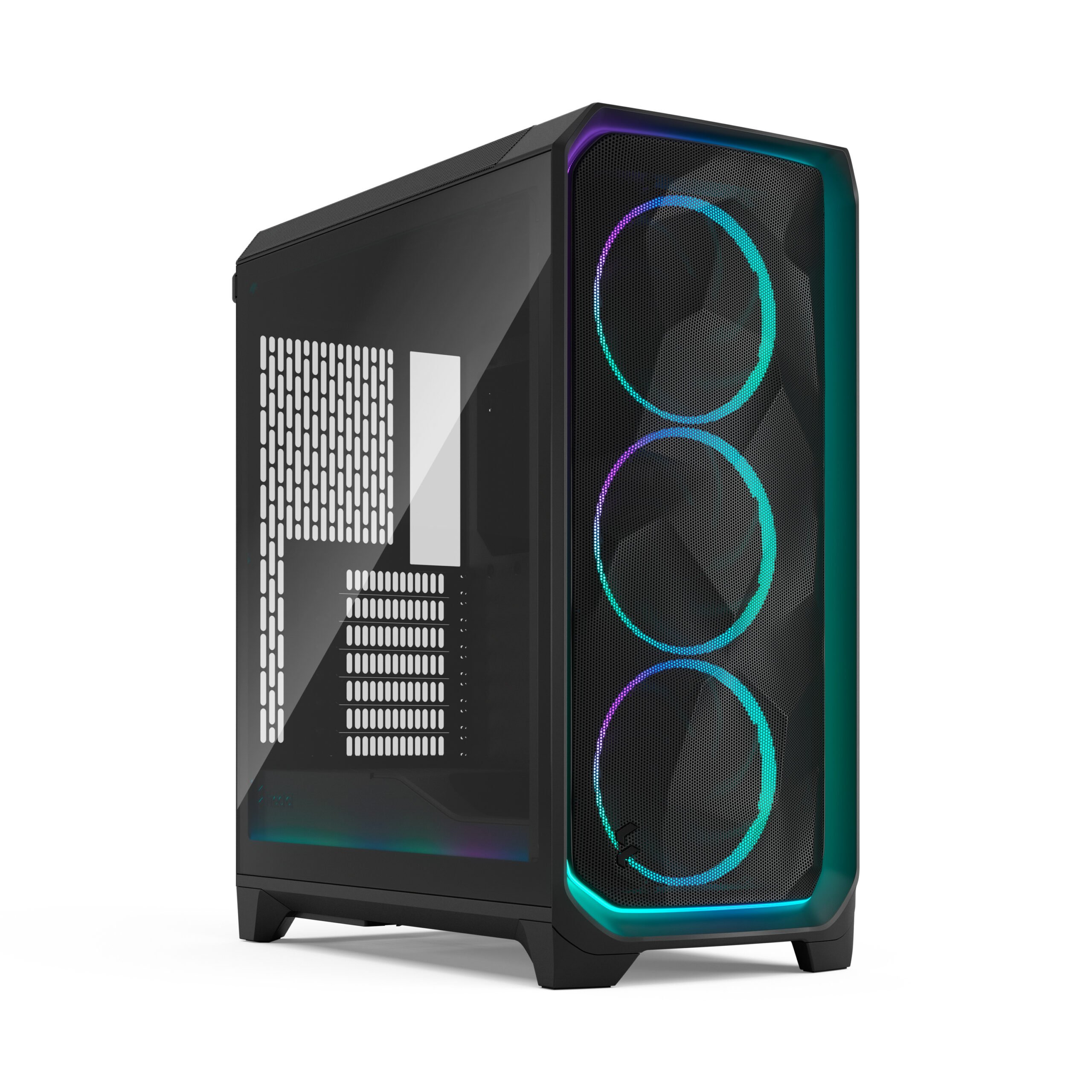

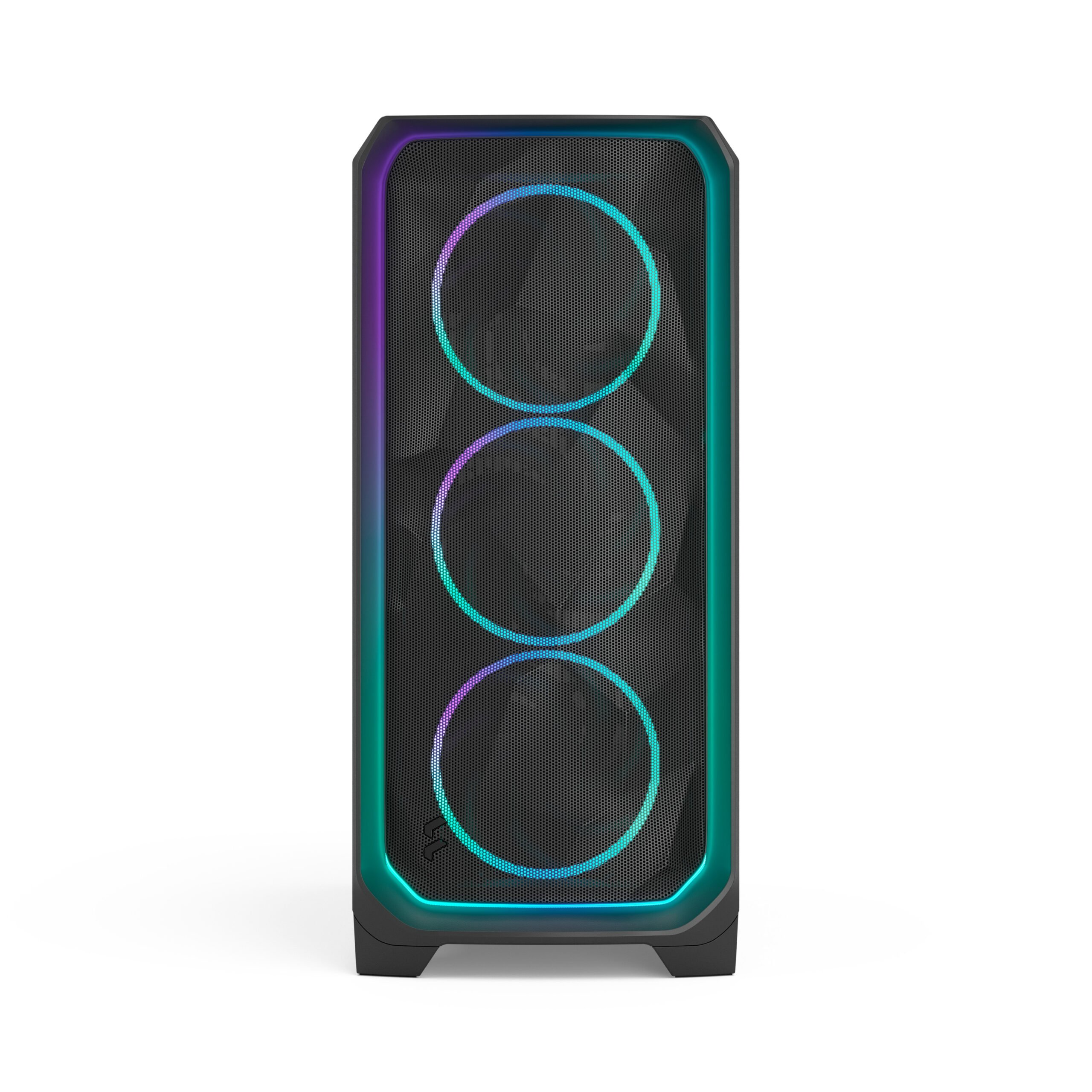

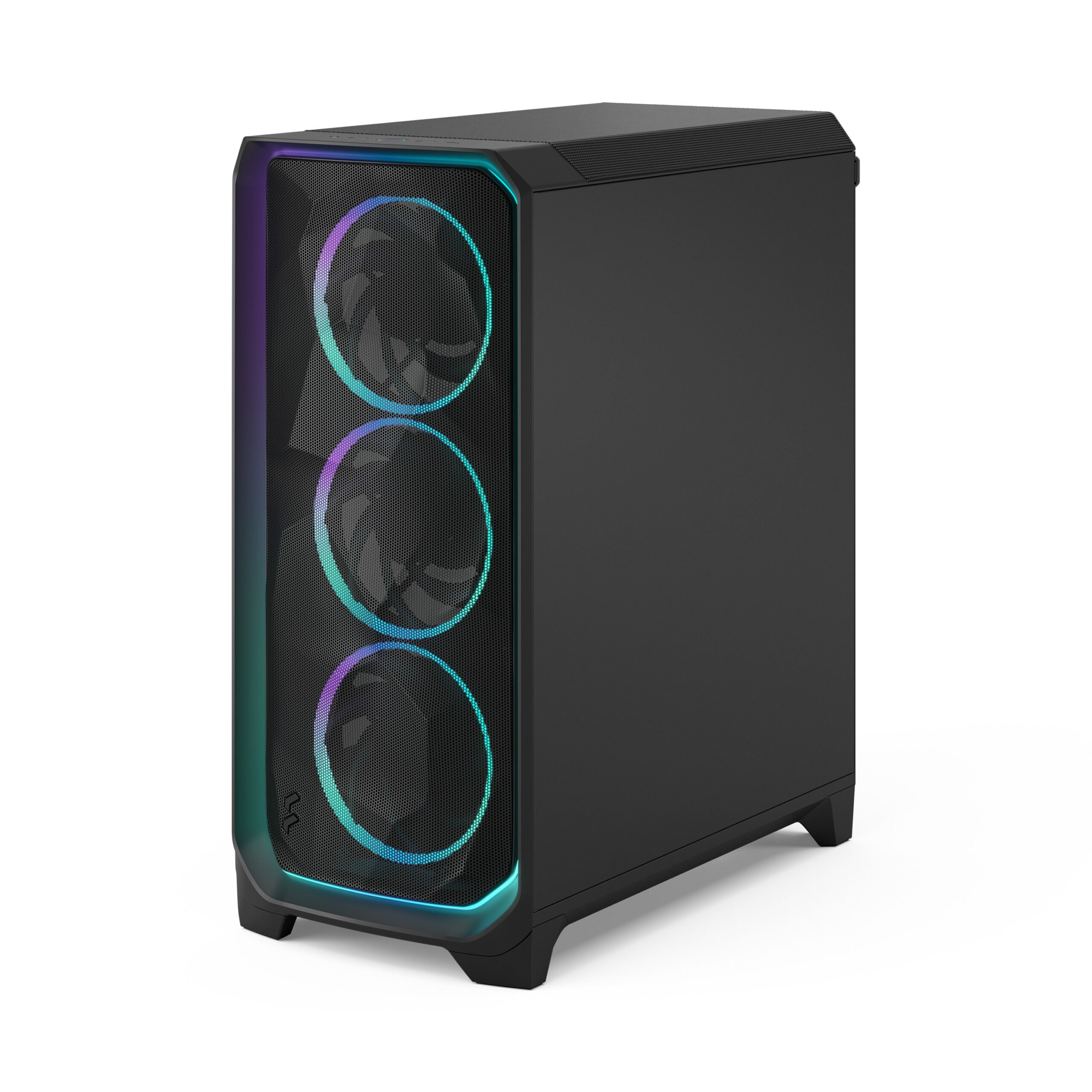

Meshify 3

Experience advanced cooling and expressive, aerodynamic design. An evolution of our mesh performance series, Meshify 3 offers performance-boosting engineering upgrades, three powerful Momentum fans, and next-level atmospheric lighting in Ambience Pro RGB versions.

Variation

Type

View specifications
Find retailer

Performance
enhanced

Advanced airflow

Access performance engineering with ample ventilation and an air guide which directs airflow towards components to improve GPU cooling.

Evolved design

Elevate your space with an aerodynamic design aesthetic featuring a sleek, rockface-inspired mesh front panel.

White

Black

Designed for gaming

Create a powerful gaming system with space for graphics cards up to 349 mm in length and E-ATX (277 mm) motherboard compatibility.

Ambience Pro RGB Version

Enhanced lighting

Create the right atmosphere with advanced ARGB Gen 2 ambient lighting, including an animated PC startup effect.

Ambience Pro RGB Version

Tailored experience

Customize your lighting and fans easily with a download-free configuration tool, accessed via the included Adjust Pro Hub.

Adjust Pro

Ambience Pro RGB versions of Meshify 3 and Meshify 3 XL include a pre-routed Adjust Pro Hub, a device that acts as a bridge between components and Adjust Pro — our new online configuration tool.

Configure online

Adjust Pro is a web-based software solution which you can access simply by visiting the Adjust Pro page in a chromium-based desktop browser. It allows you to control the lighting of your ARGB Gen 2 devices and modify fan speeds without downloading or running background software, as all your settings are saved locally on the included Adjust Pro Hub.

Discover the right atmosphere

Control and synchronize the ambient case lighting and Momentum RGB fan light rings in your web browser with Adjust Pro. The lighting of the case and fans are ARGB Gen 2, allowing the online tool to address LEDs individually for holistic animations and effects. To find your ideal atmosphere for gaming, you can simply select one of the curated themes in Adjust Pro or create your own custom look.

Control the flow

Control your fan settings by adjusting speed curves in Adjust Pro. Each port in Adjust Pro Hub can be individually controlled through Adjust Pro, allowing you to customize fan groups. You can set your own curves for the included Momentum RGB fans, maximizing their power for high-performance tasks or stopping them completely with Zero RPM mode.

Visit Adjust Pro

Easily accessible

Enjoy a smooth build experience with easily removable panels, including a sliding top panel featuring a fabric tab.

Powerful fans included

Includes three high-performance Momentum 14 fans, featuring LCP blades and true FDB bearings for improved cooling and quieter operation.

Cooler compatible

Cool your build further with up to a 280 mm top radiator and 360 mm front radiator, with removable brackets for easy installation.

Accessible I/O

Connect your devices easily with a top I/O featuring a 20 Gbps USB Type-C port, two USB-A ports and a combined audio jack.

Clean finish

Achieve a neat and tidy look with a clean interior layout featuring a cable cover and new cable aligners for easy routing.
Language Active language flag
"Overall ThinkComputers gives the Fractal Design Meshify 3 Ambience Pro RGB Case a 9 out of 10 score and our Recommended Award!"
ThinkComputers Read the full review
PCMag UK Read the full review
"Looking at the case, Fractal has done an excellent job with its relentless attention to design details, with some nice and unique implementations around storage and cable management."
Techpowerup Read the full review
"la Fractal Design Meshify 3 Ambience Pro RGB es una caja ideal para montar ordenadores de alto rendimiento, con componentes que necesiten una gran capacidad de refrigeración, sin que por ello tengamos que sacrificar diseño o facilidad de montaje."
Geeknetic.es Read the full review
Hardwareluxx Read the full review
Hardware-Helden.de Read the full review
Benchmark.pl Read the full review

Gamers Nexus: A New Best: Fractal Meshify 3 Case Review, Thermal Benchmarks, & Noise

Level1Techs: Fractal Meshify 3: Your next Case?

Hardware Canucks: Fractal's Peak Case - Meshify 3 Review

Videos

Meshify 3 series - Feature Reel

Meshify 3 Meshify 3 XL
Graphics card (max length) 349 mm 512 mm
Graphics card (max height) 176 mm (incl. cables) 189 mm (incl. cables)
PSU max length 180 mm 230 mm
CPU cooler max height 173 mm 182 mm
Cable routing space 34,5 mm 37,5 mm
Top radiator 240/280 mm 360/420 mm
Front radiator 280/360 mm 280/360 mm
Side radiator - 360 mm (with brackets)
Total fan mounts 6x 120 mm or 5x 140 mm + 1x 120 mm 10 (140 mm) / 7 (120 mm)

Specifications

  • 3.5"/2.5" drive mounts
    2/4
  • Dedicated 2.5" drive mounts
    2 (6 total)
  • 5.25” drive mounts
    -
  • Expansion slots
    7
  • Adjust Pro Hub
    Included in Ambience Pro RGB version
  • Ambient Case Lighting
    Ambience Pro RGB version
  • Front interface
    1 x USB Type-C 20 Gbps, 2 x USB Type-A 5 Gbps, 1x Audio Combo Jack, Power button
  • Total fan mounts
    6x 120 mm or 5x 140 mm + 1x 120 mm
  • Front fan
    3x 120 mm, 3x 140 mm (3 x 140 mm Momentum Included)
  • Top fan
    2x 120 mm, 2x 140 mm
  • Rear fan
    1x 120 mm
  • Bottom fan
    -
  • Dust filters
    PSU (Bottom)
  • Cable routing space
    34,5 mm
  • Cable cover
    Yes
  • Cable organizers
    3 Hook-and-loop straps + 3 Cable Aligners
  • Tool-less push-to-lock
    Both Side Panels, Bottom Filter, Front Panel, Top Panel, PSU Bracket
  • Captive thumbscrews
    Top Radiator Bracket, PSU Bracket
  • Left side panel
    Industrial steel (Solid), Tempered Glass (TG/RGB/Ambience Pro RGB)
  • Right side panel
    Industrial steel

Compatibility

  • Power supply type
    ATX
  • Motherboard compatibility
    E-ATX (277 mm) / ATX / MATX / m-ITX
  • PSU max length
    180 mm
  • GPU max length
    349 mm
  • GPU max height
    176 mm (7 slot) including cables
  • CPU cooler max height
    173 mm
  • Front radiator
    280/360 mm
  • Top radiator
    240/280 mm
  • Rear radiator
    120 mm
  • Bottom radiator
    -

Dimensions

  • Case dimensions (LxWxH)
    433 x 229 x 507 mm
  • Case dimensions w/o feet/protrusions/screws
    423 x 229 x 483 mm
  • Package dimensions
    596 x 345 x 550 mm
  • Net weight
    8.7 kg (Solid) 8.8 kg (TG and RGB) 9.1 kg (Ambience Pro RGB)
  • Gross weight
    10.5 kg (Solid) 10.6 kg (TG and RGB) 11.1 kg (Ambience Pro RGB)

Other

  • Package contents
    Case, Accessory Box, manual, Manual, Red Note
  • Accessory Box content (Solid/TG/RGB)
    Motherboard Screw x9, PSU Screw x4, SSD Screw x24, HDD Screw x8, Motherboard Standoff x1, HDD Rubber x8, Zip Tie x4
  • Accessory Box content (Ambience Pro RGB)
    Motherboard Screw x9, PSU Screw x4, SSD Screw x24, HDD Screw x8, Motherboard Standoff x1, HDD Rubber x8, Zip Tie x4, 500 mm Fractal Connect Cable x1, Legacy Splitter Cable
  • EAN
    Black Solid: 7340172707165 Black TG Light Tint: 7340172707172 Ambience Pro RGB Black TG Light Tint: 7340172707189 White TG Clear Tint: 7340172707196 Ambience Pro RGB White TG Clear Tint: 7340172707202 Black RGB TG Light Tint: 7340172709503 White RGB TG Clear Tint: 7340172709510
  • UPC
    Black Solid: 843276107161 Black TG Light Tint: 843276107178 Ambience Pro RGB Black TG Light Tint: 843276107185 White TG Clear Tint: 843276107192 Ambience Pro RGB White TG Clear Tint: 843276107208 Black RGB TG Light Tint: 843276109509 White RGB TG Clear Tint: 843276109516
  • Product Code
    Black Solid: FD-C-MES3A-01 Black TG Light Tint: FD-C-MES3A-02 Ambience Pro RGB Black TG Light Tint: FD-C-MES3A-03 White TG Clear Tint: FD-C-MES3A-04 Ambience Pro RGB White TG Clear Tint: FD-C-MES3A-05 Black RGB TG Light Tint: FD-C-MES3A-06 White RGB TG Clear Tint: FD-C-MES3A-07
  • Warranty
    2 Years
