POWER SUPPLY

Ion 3 Gold 750W

Ion 3 Gold delivers efficient, stable power for next-generation gaming systems. With ATX12V 3.1 compatibility, native PCIe Gen 5 support, and 80 PLUS Gold efficiency, it’s built for reliable, long-term performance.

Variation

View specifications
Find retailer

The power of silence

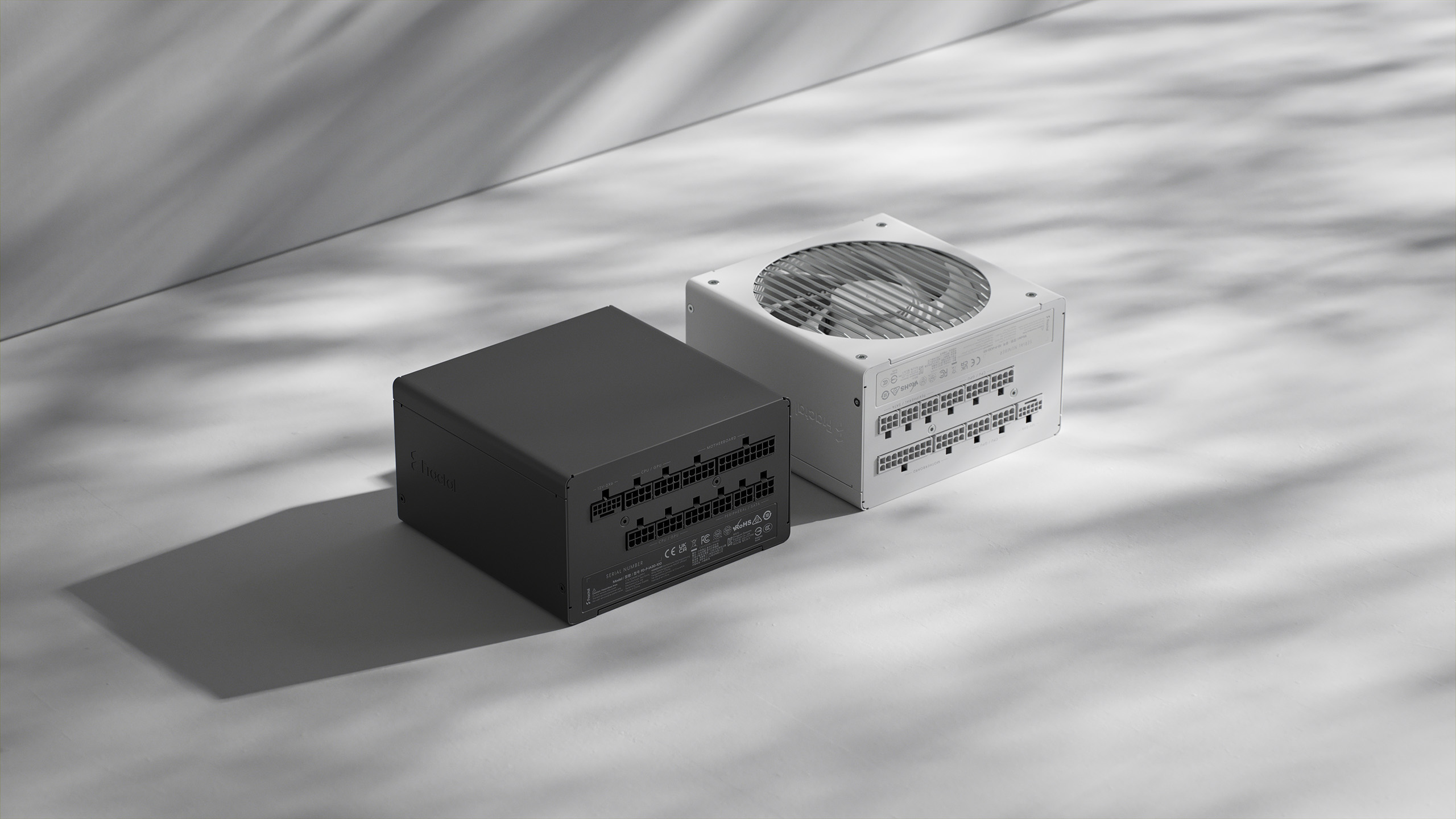

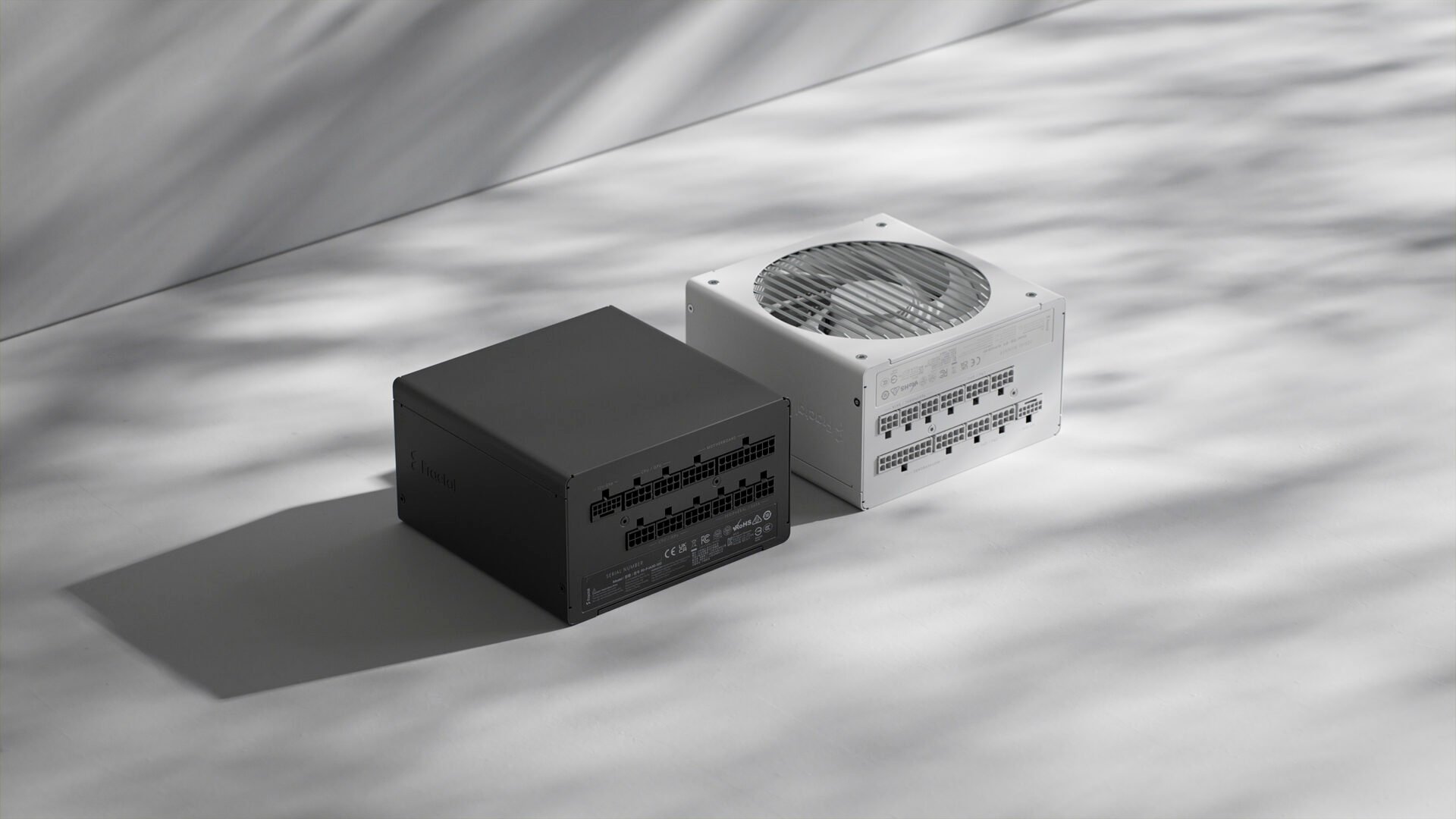

Future-ready

Connect next-generation components with ATX12V 3.1 compatibility and enjoy stable performance with graphics card power excursion support.

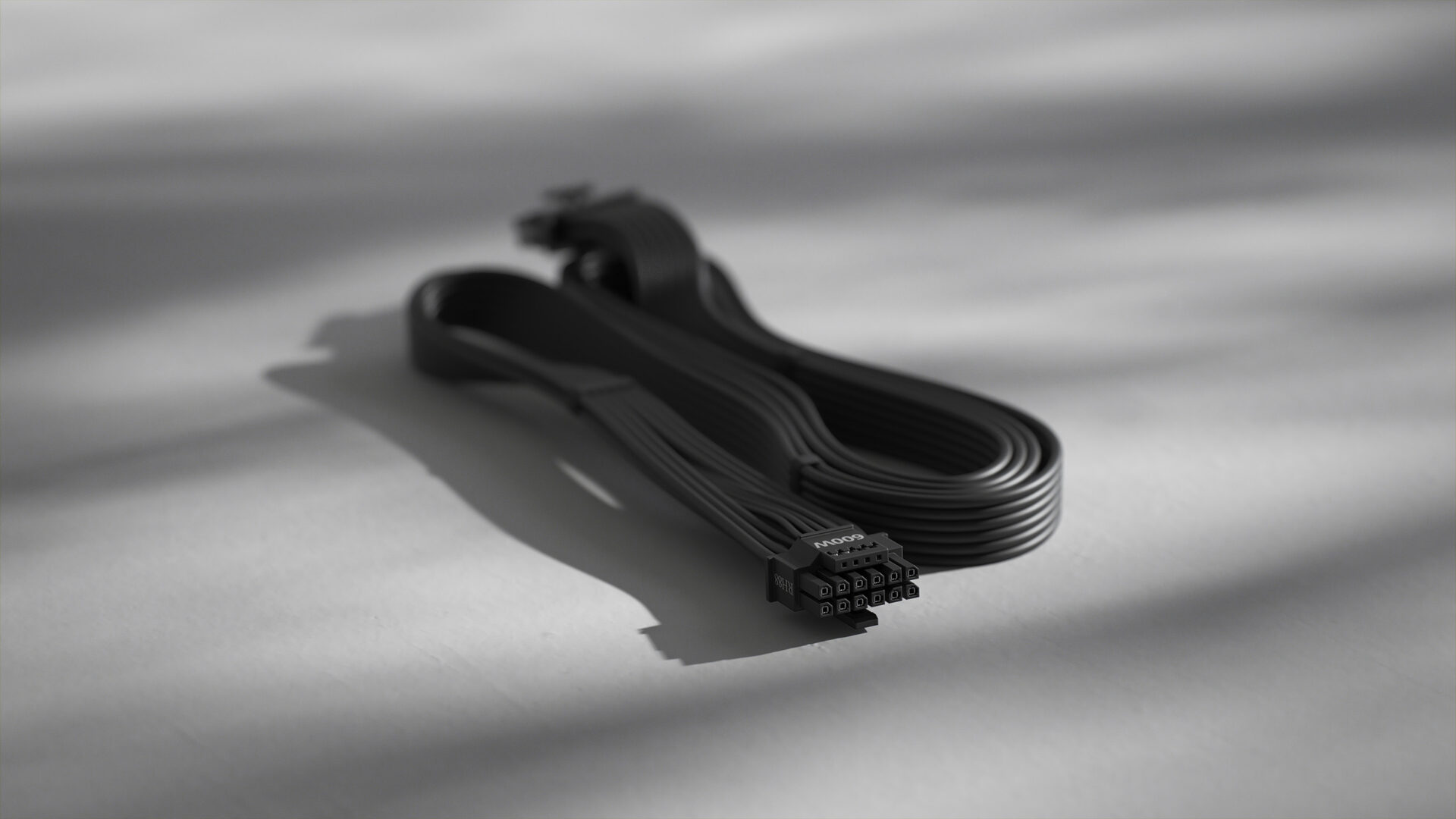

Native Gen 5 support

Power modern graphics cards with 16-pin PCIe Gen 5 12V-2×6 support featuring shortened sense pins for a reliable, secure connection.

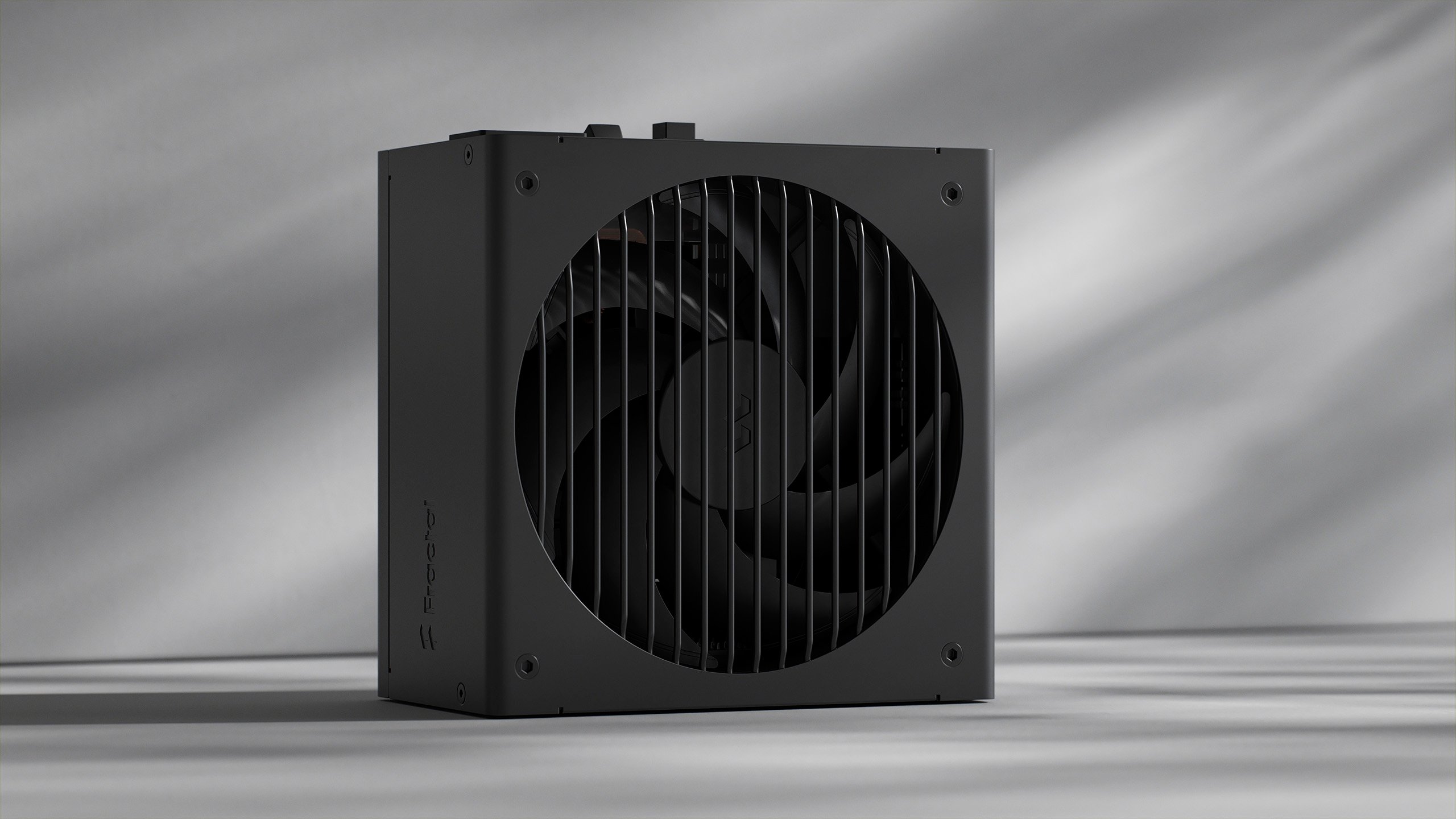

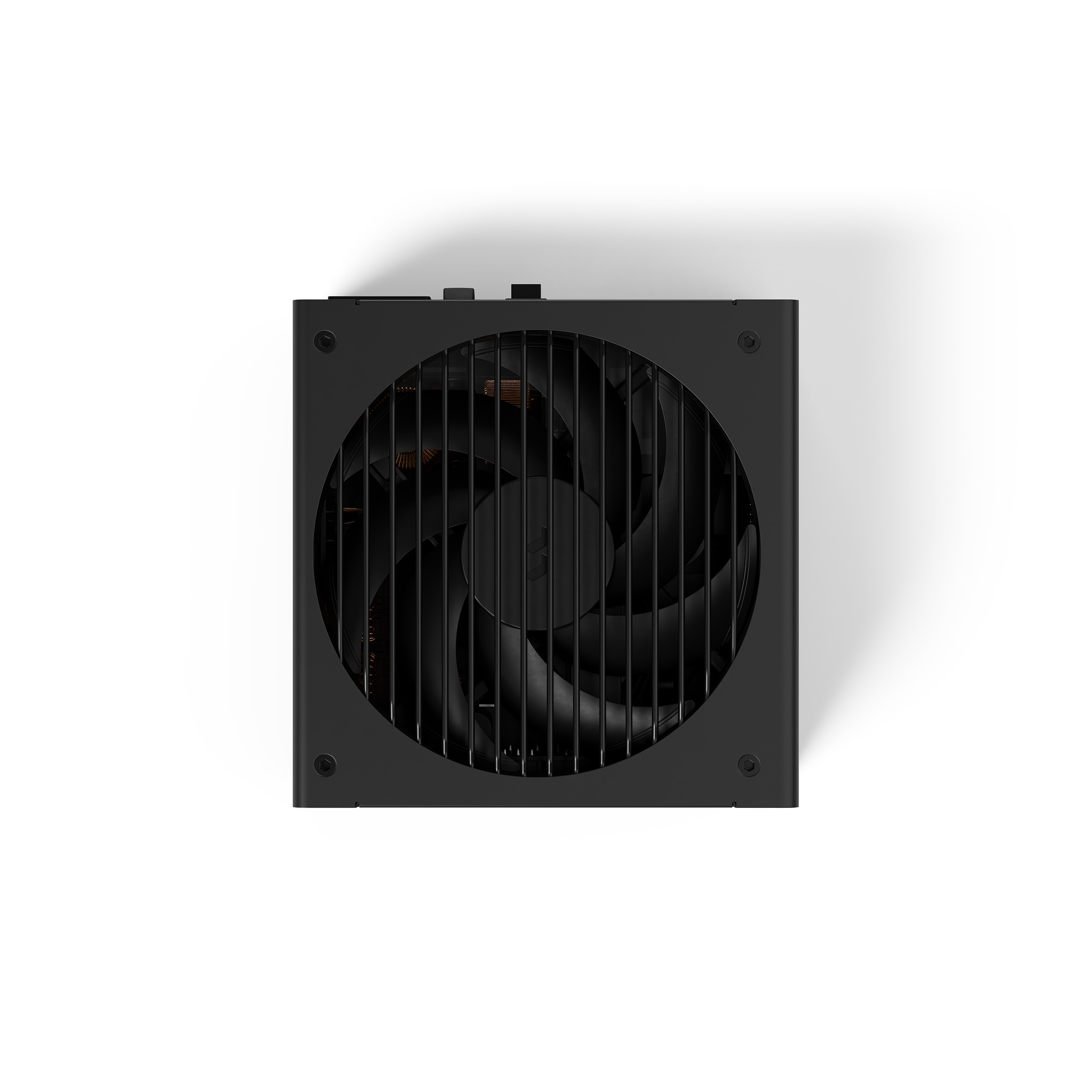

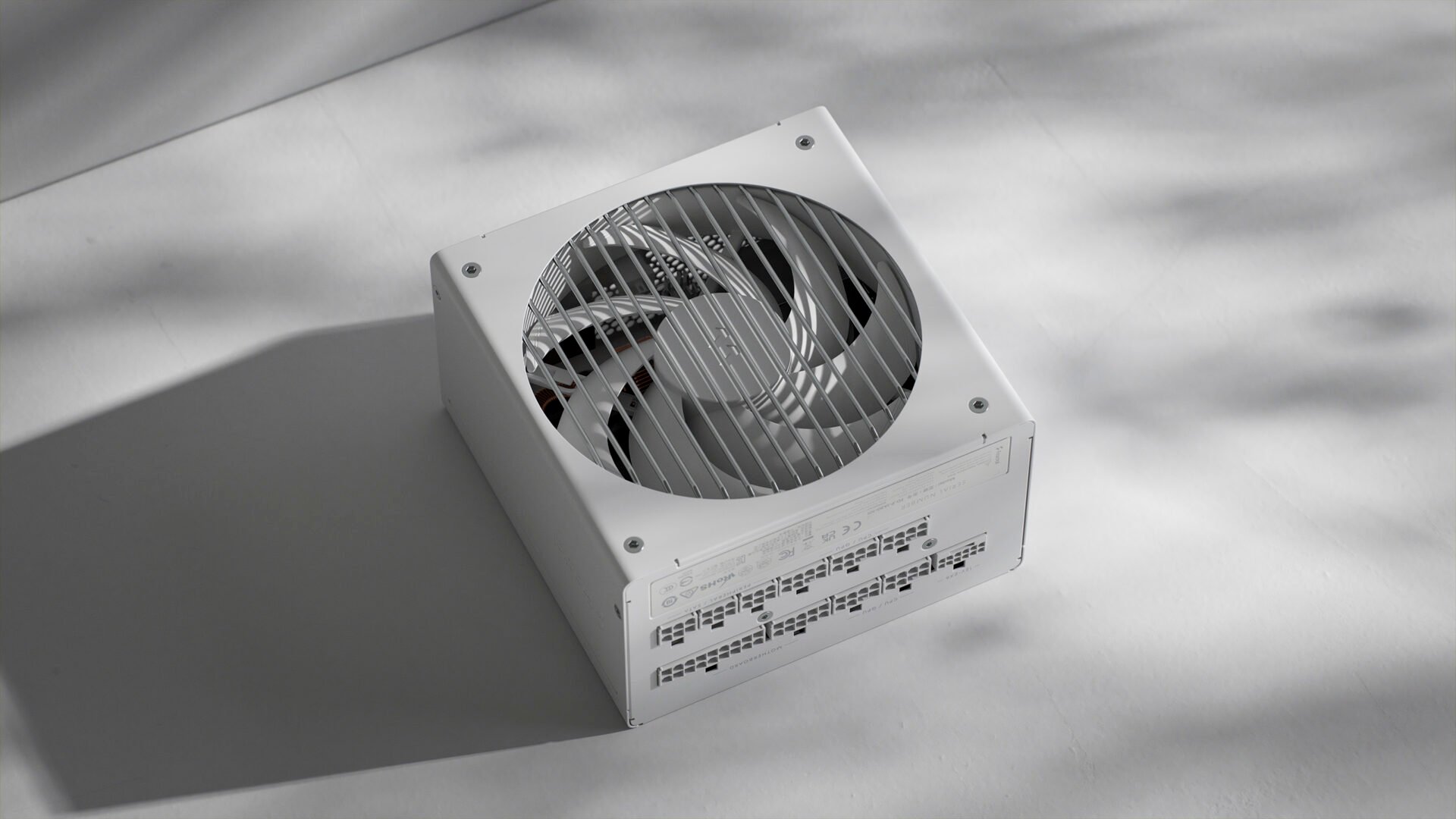

Momentum cooling

Featuring a powerful Momentum 14 fan with a fluid dynamic bearing and LCP blades to ensure lower noise, cooler operation, and a longer lifespan.

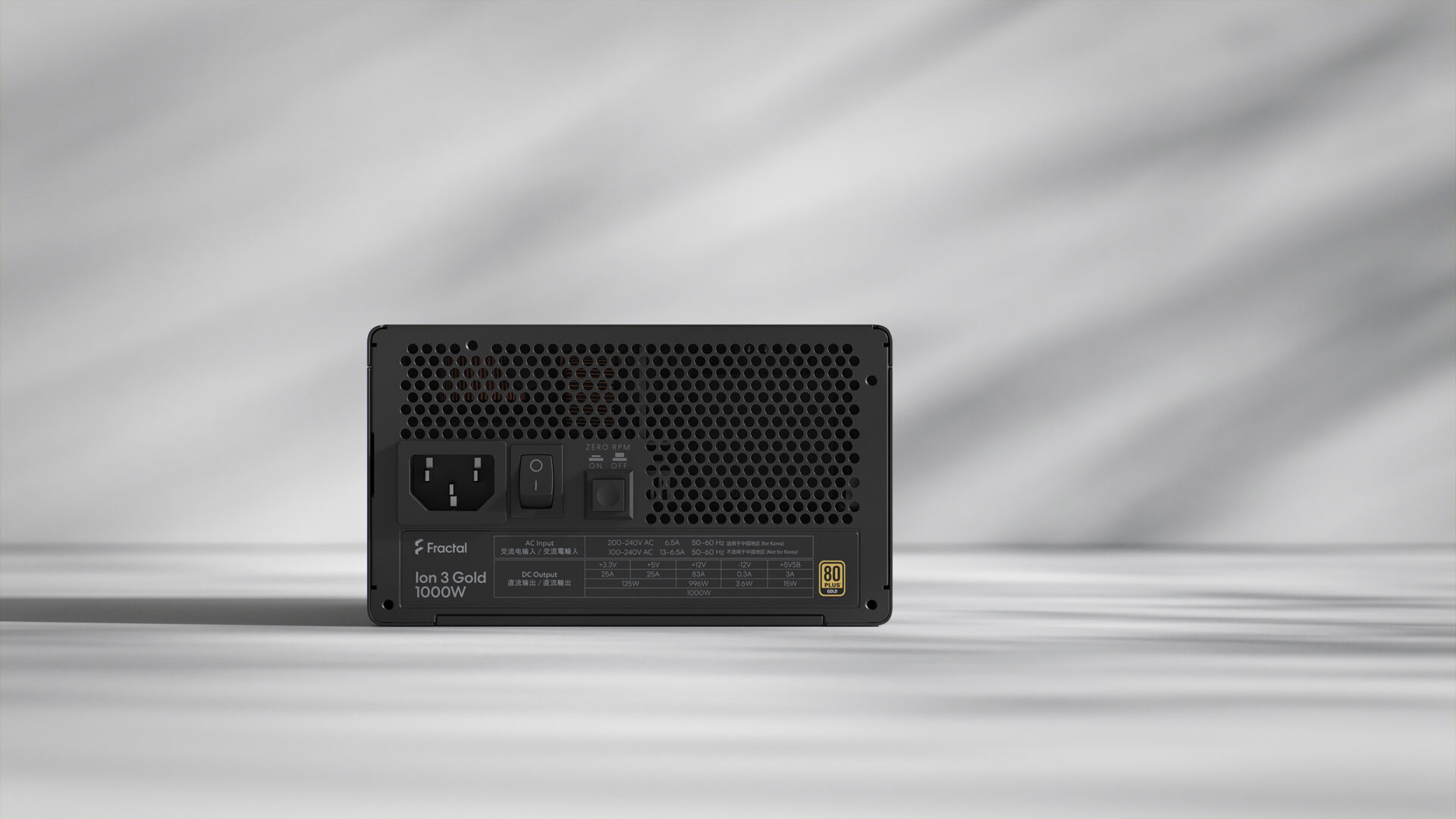

Certified efficiency

80 PLUS Gold–certified for efficient performance with reduced energy use and heat output through optimized power delivery.

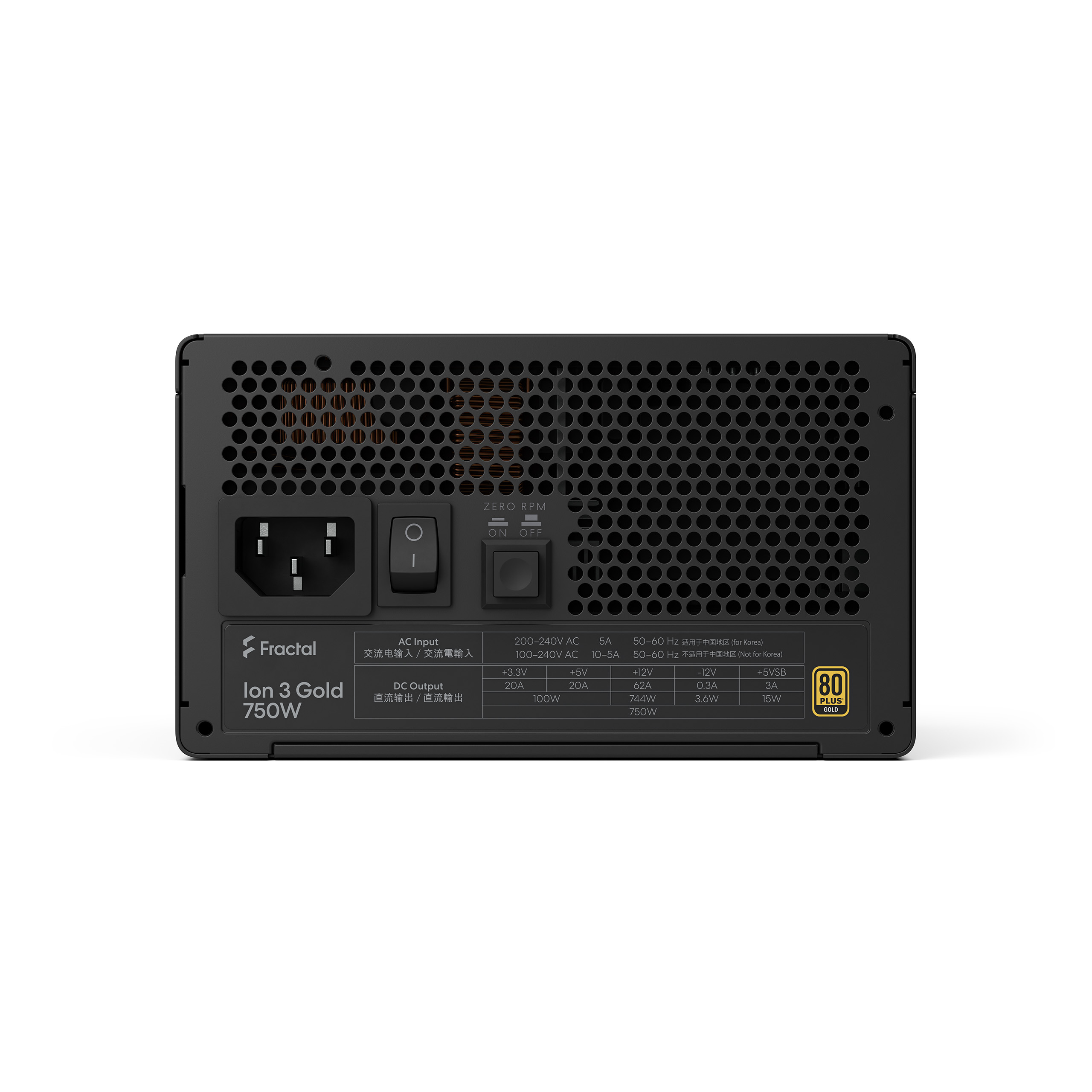

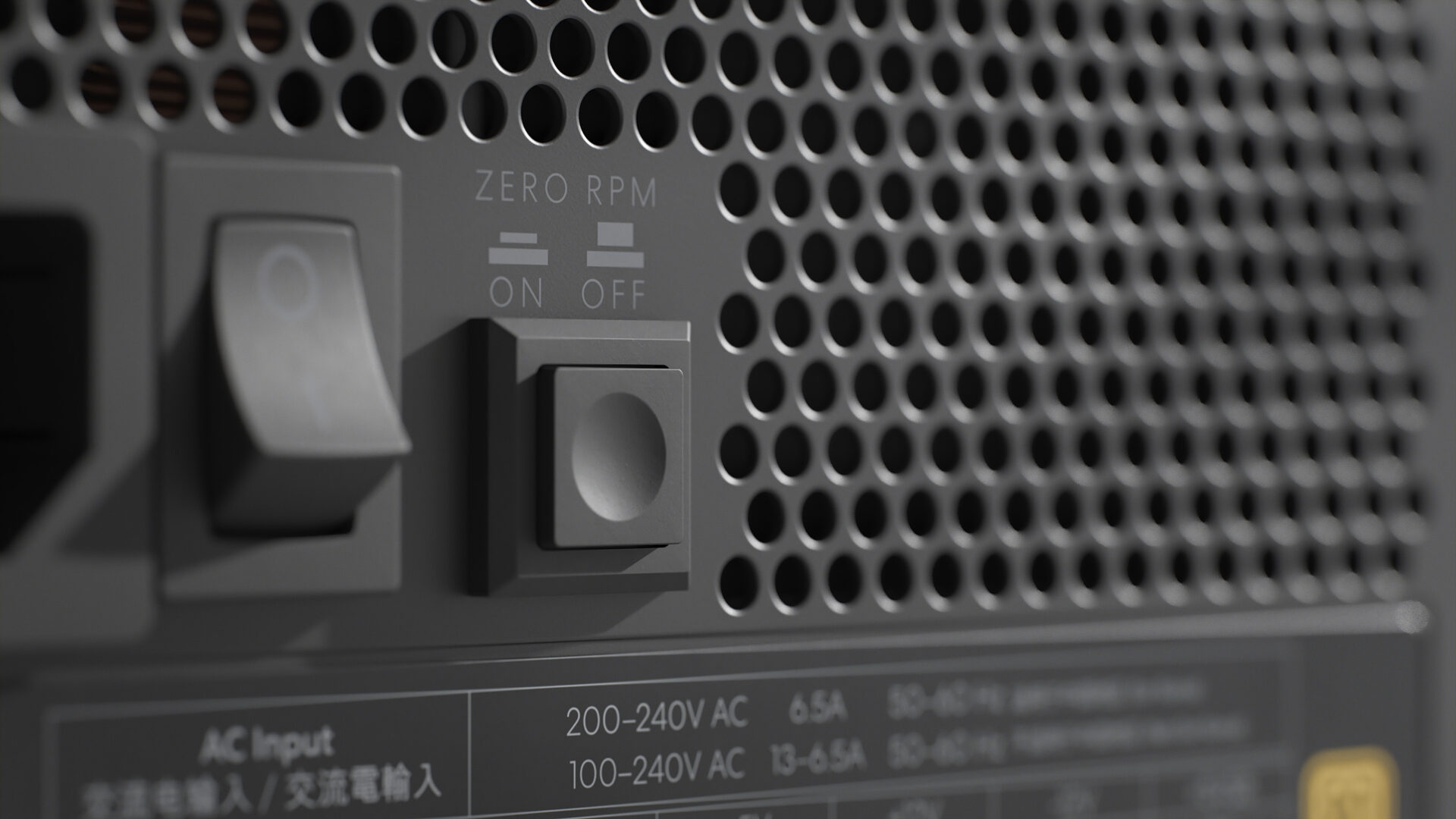

Quiet operation

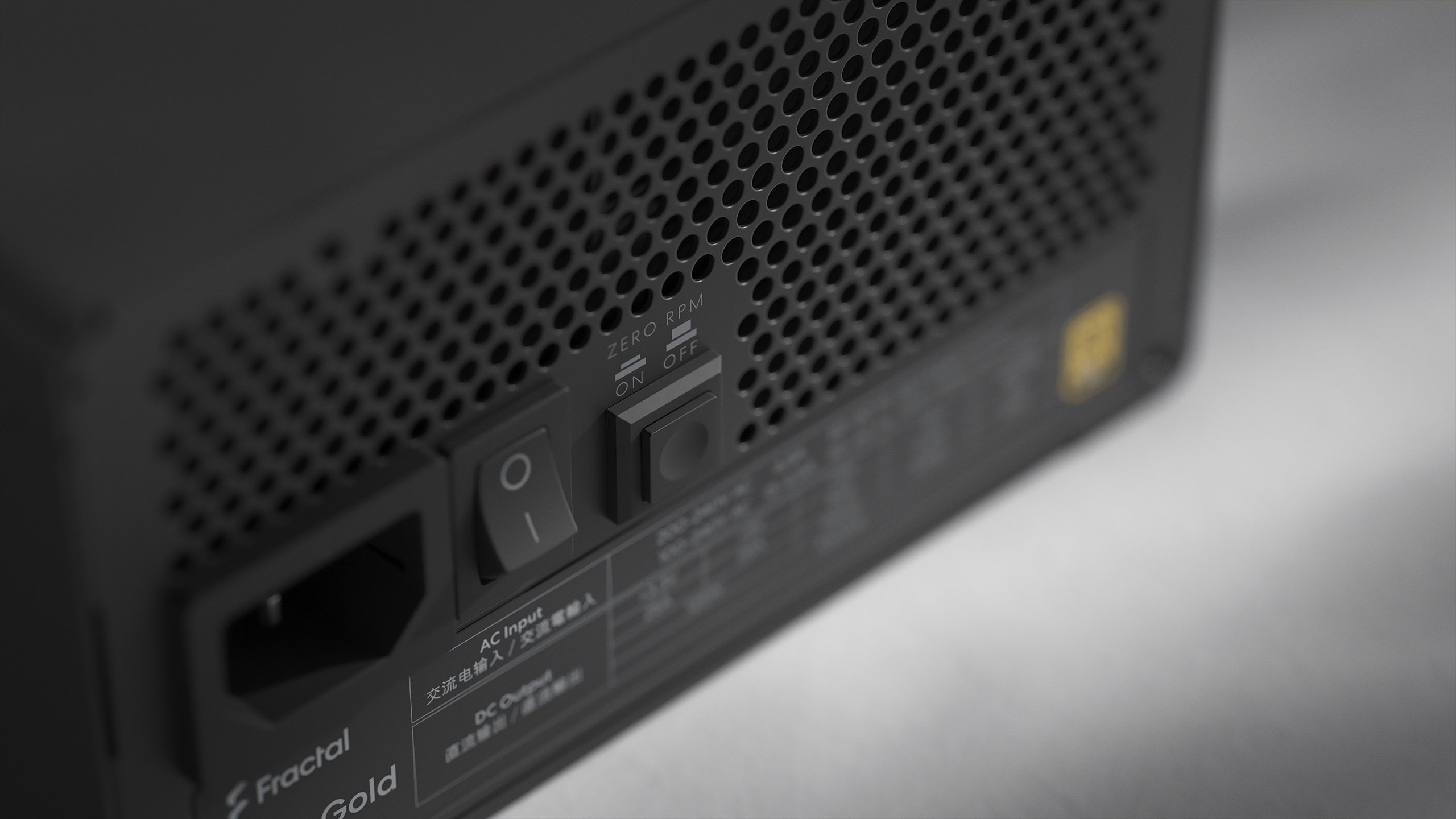

Featuring variable fan speeds for adaptive cooling and the option to activate Zero RPM Mode for near-silent operation under lighter loads.

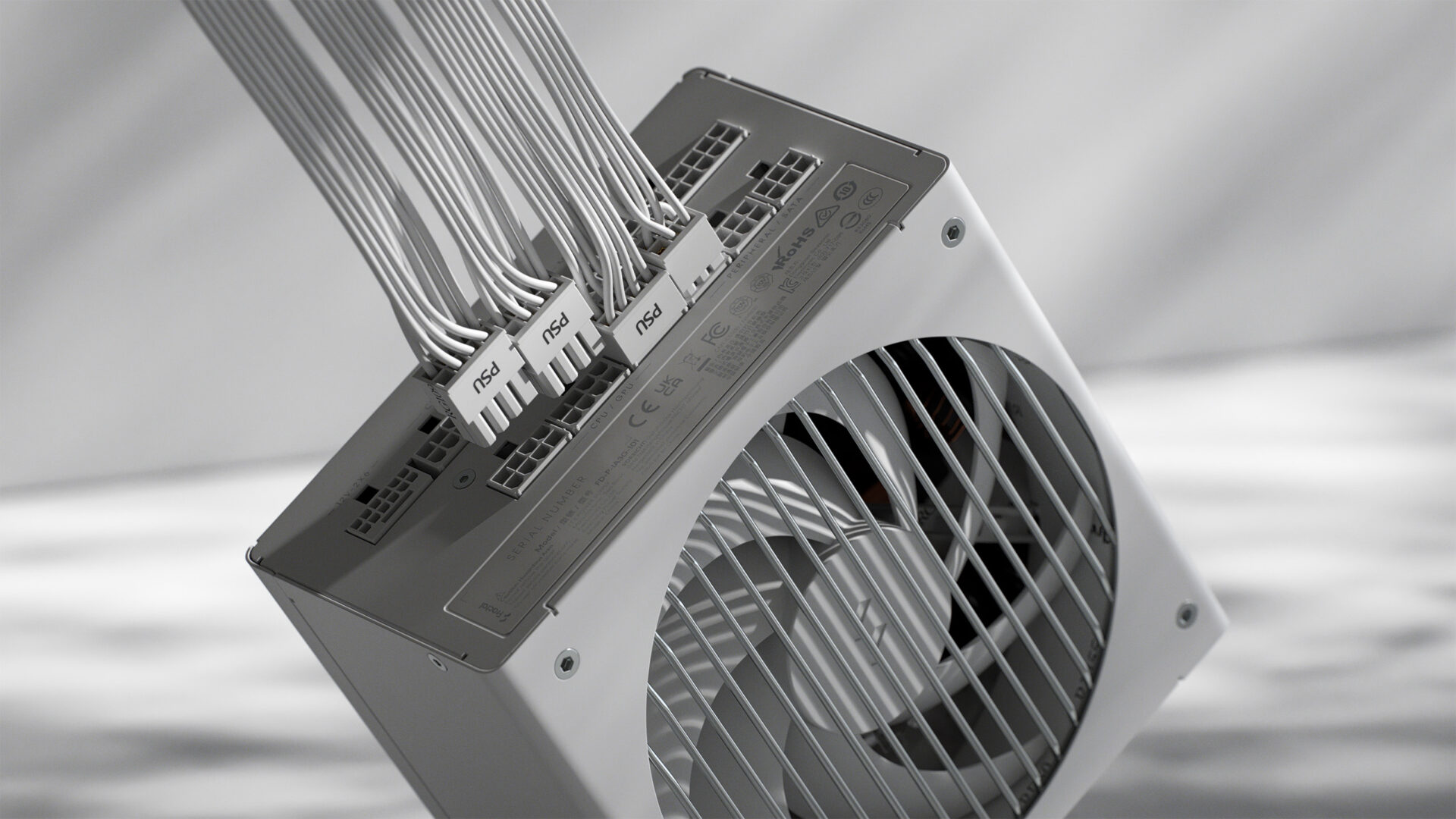

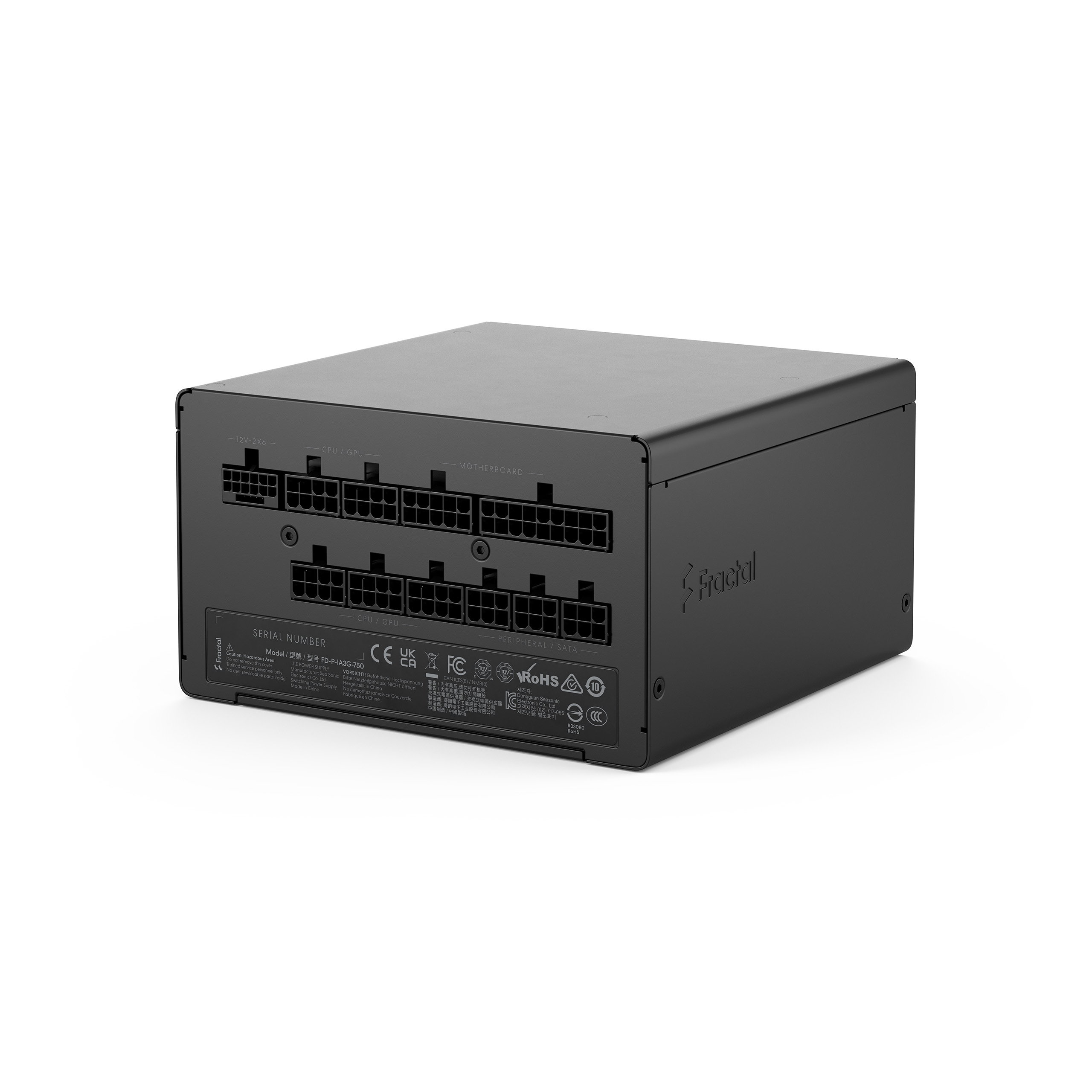

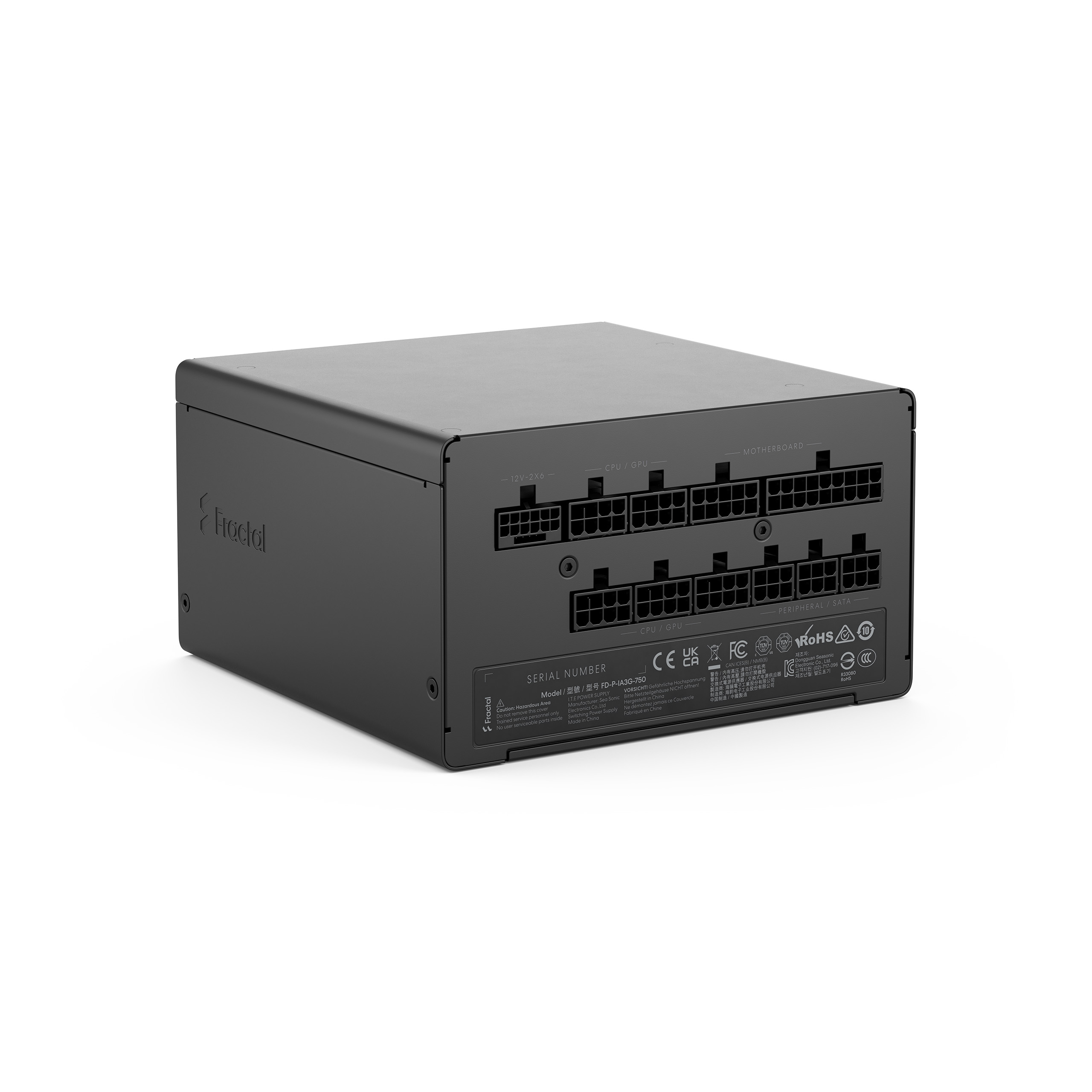

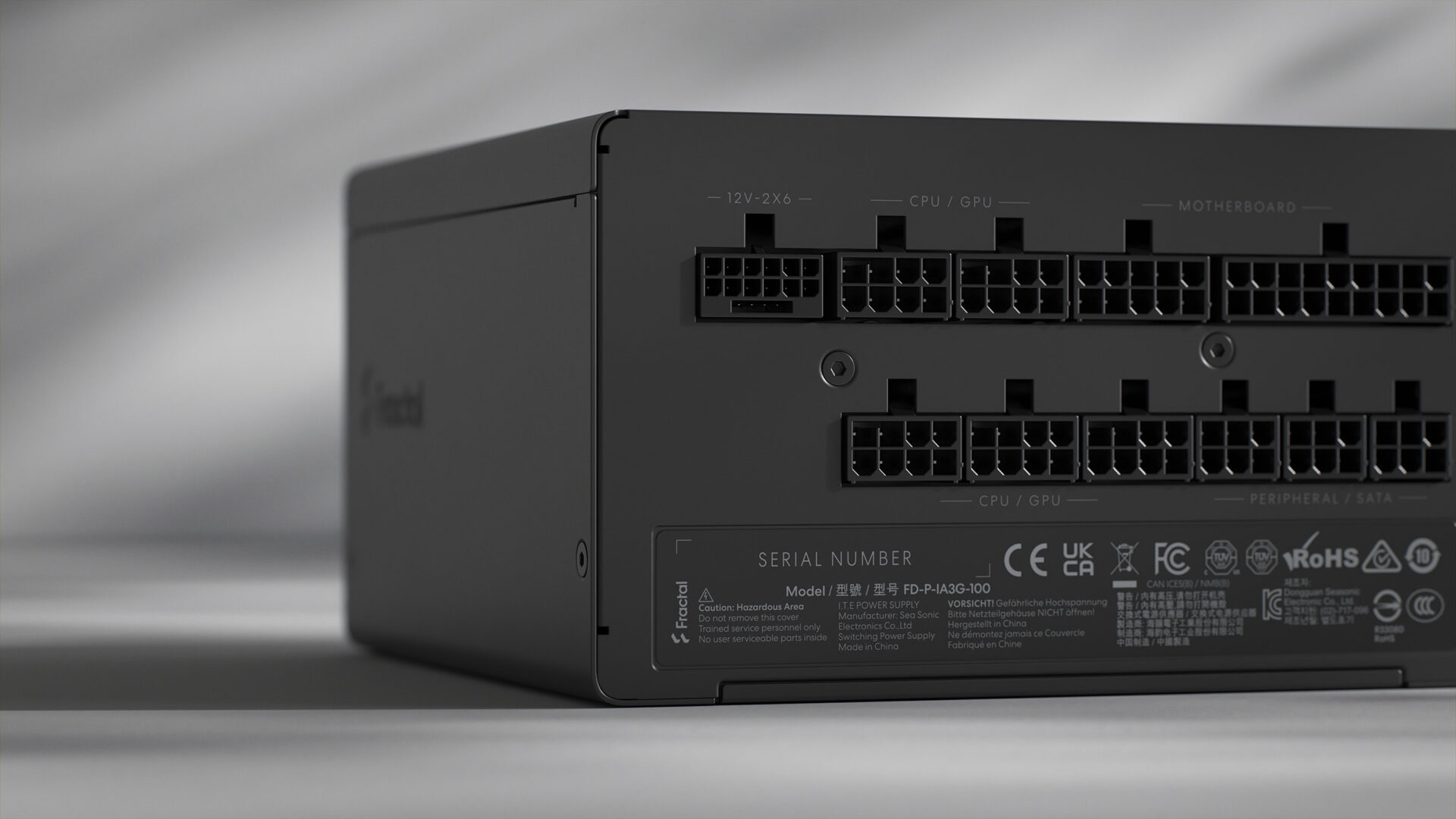

Fully modular

Achieve a clean, uncluttered build with a fully modular design and UltraFlex cables for smoother cable routing.

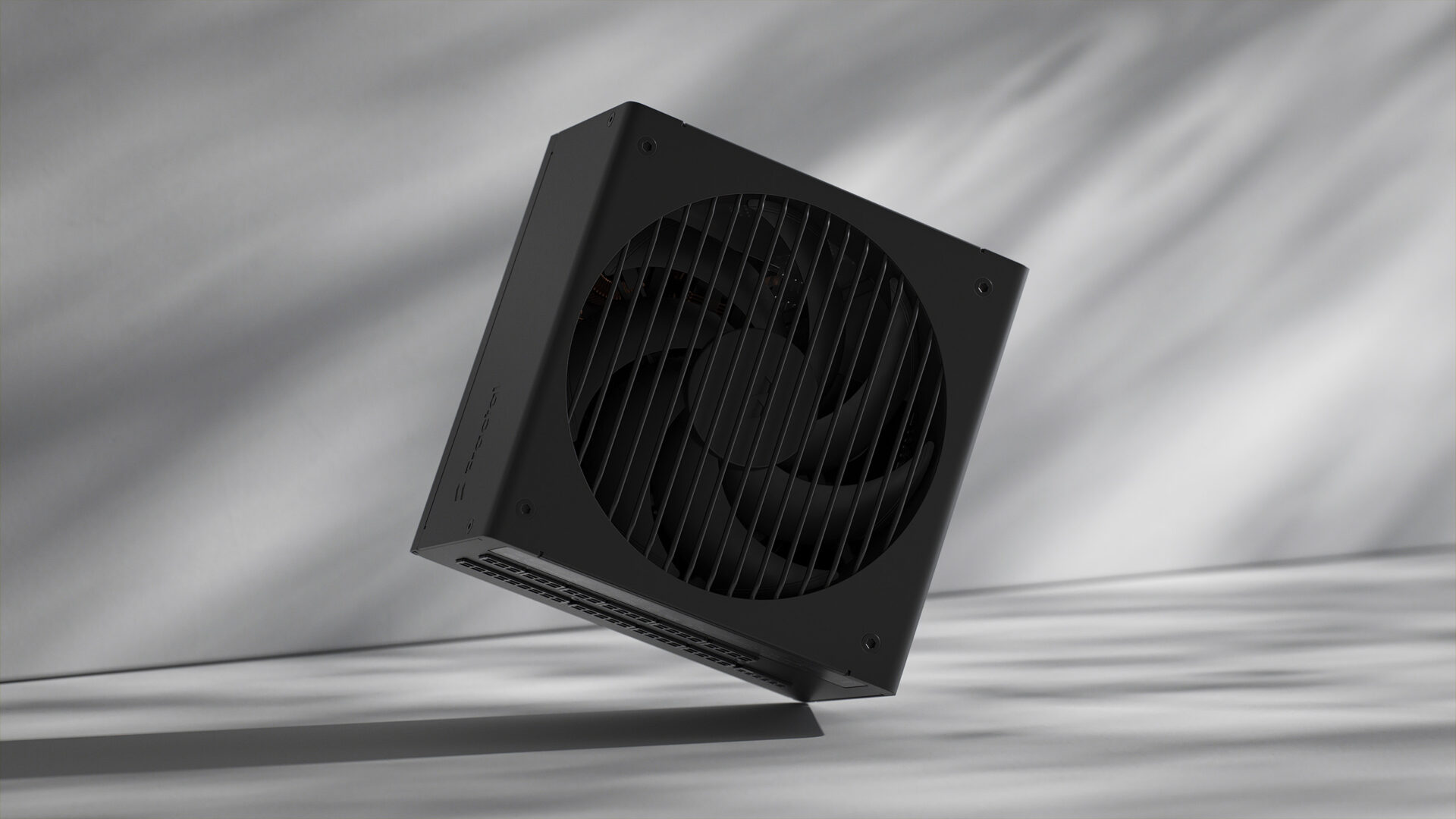

Designed to last

Built with high-quality, reliable components including Japanese 105°C capacitors and an extensive 10-year warranty.

Specifications

  • Wattage
    750W
  • PSU specification compliance
    PSU specification compliance ATX12V 3.1
  • Efficiency Certification
    80PLUS® Gold
  • Modular cables
    Fully modular
  • Fan type
    Momentum 14 series fan, with Fluid Dynamic Bearing
  • Semi-passive operation
    Yes, user selectable (Zero RPM mode)
  • DC cable type
    UltraFlex, flat cables
  • Cable Color
    Black PSU: Black, White PSU: White
  • Electrolytic capacitors
    105°C Japanese capacitors
  • Number of 12V rails
    Single 12V rail
  • Protection features
    Over Power Protection (OPP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Current Protection (OCP), Over Temperature Protection (OTP)
  • Life expectancy (MTBF)
    100 000 h (25°C ambient temperature)
  • Modern sleep state compatibility
    C6 and C7 compatible
  • Power factor correction (PFC)
    Yes, active
  • Input voltage
    100-240 V
  • Standby efficiency
    ≥ 45% ErP Lot 6 compliant
  • Maximum operating temperature
    40°C (full load), 50°C (80% load)
  • Approvals & certifications
    CE, UKCA, BSMI, CCC, FCC, TUV, cULus, RCM, ICES, CB, KC
  • Warranty
    10 years

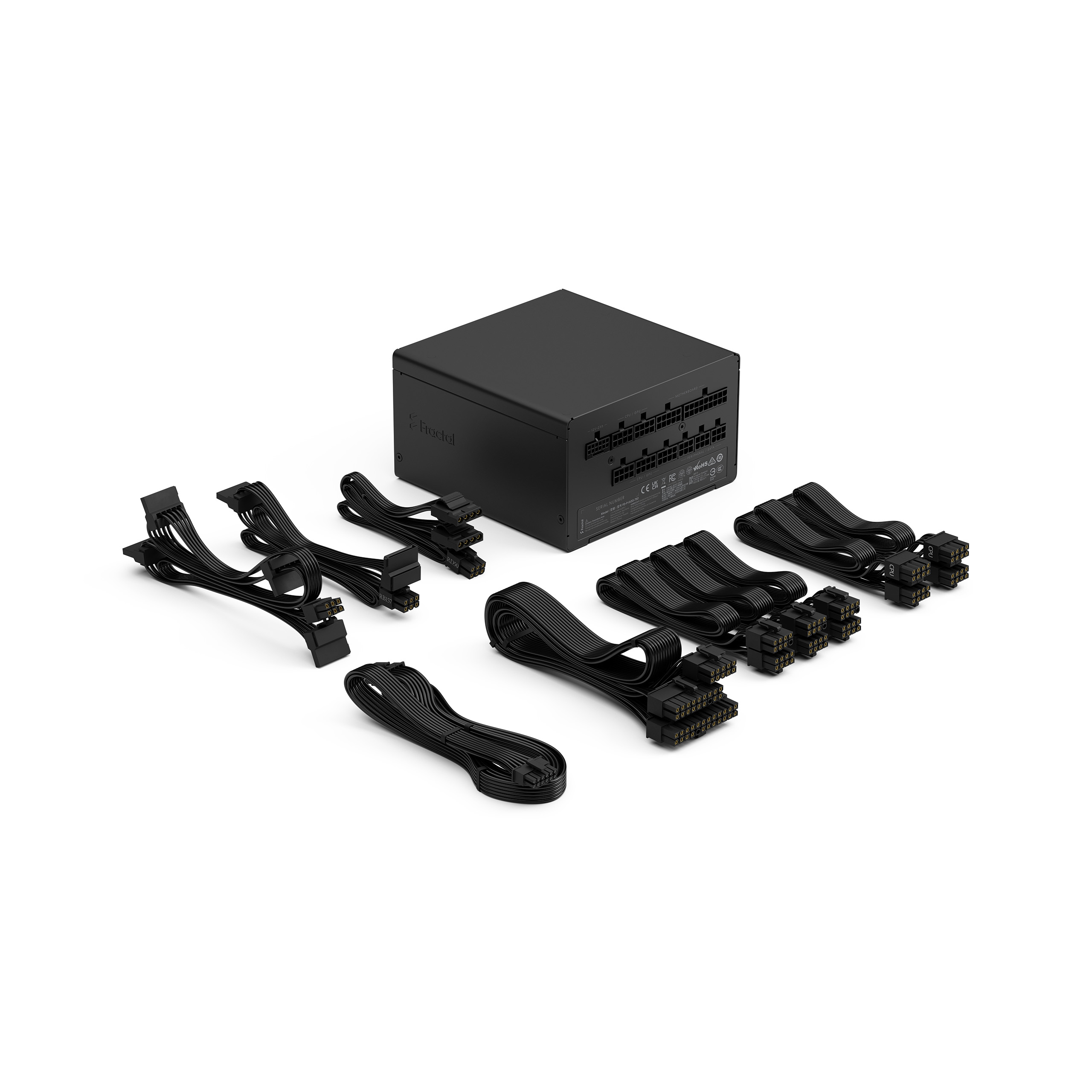

Included modular cables

  • ATX 24 pin, 600 mm
    1
  • ATX 12V 4+4P, 700 mm
    2
  • PCI-E 6+2 pin, 650 mm
    3
  • PCI-E Gen5 12V-2x6, 700 mm
    1
  • 4x SATA, 400+150+150+150 mm
    1
  • 2x SATA 650+150 mm
    1
  • Total number of SATA connectors
    6
  • 2x Peripheral (Molex) 650+150 mm
    1
  • Total number of Molex connectors
    2

Other

  • Package contents
    Ion 3 Gold power supply unit, Modular cables, Accessory kit, User manual, Power cord (regional)
  • Unit dimensions (LxWxH)
    150 x 150 x 86 mm
  • Net weight (unit only)
    1.8 kg
  • Package dimensions (LxWxH)
    354 x 189 x 122 mm
  • Package weight
    3.2 kg
  • EAN
    7340172710257
  • UPC
    843276110253
  • Product code
    FD-P-IA3G-750
