Node 304

This model features a unique modular interior for outstanding configurability

  • Compact, modular interior
  • Minimalistic design with an elegant aluminum front panel
  • Unique new modular mounting system that accommodates up to six hard drives

Variation

Type

View specifications
Find retailer

Showreel

Key features

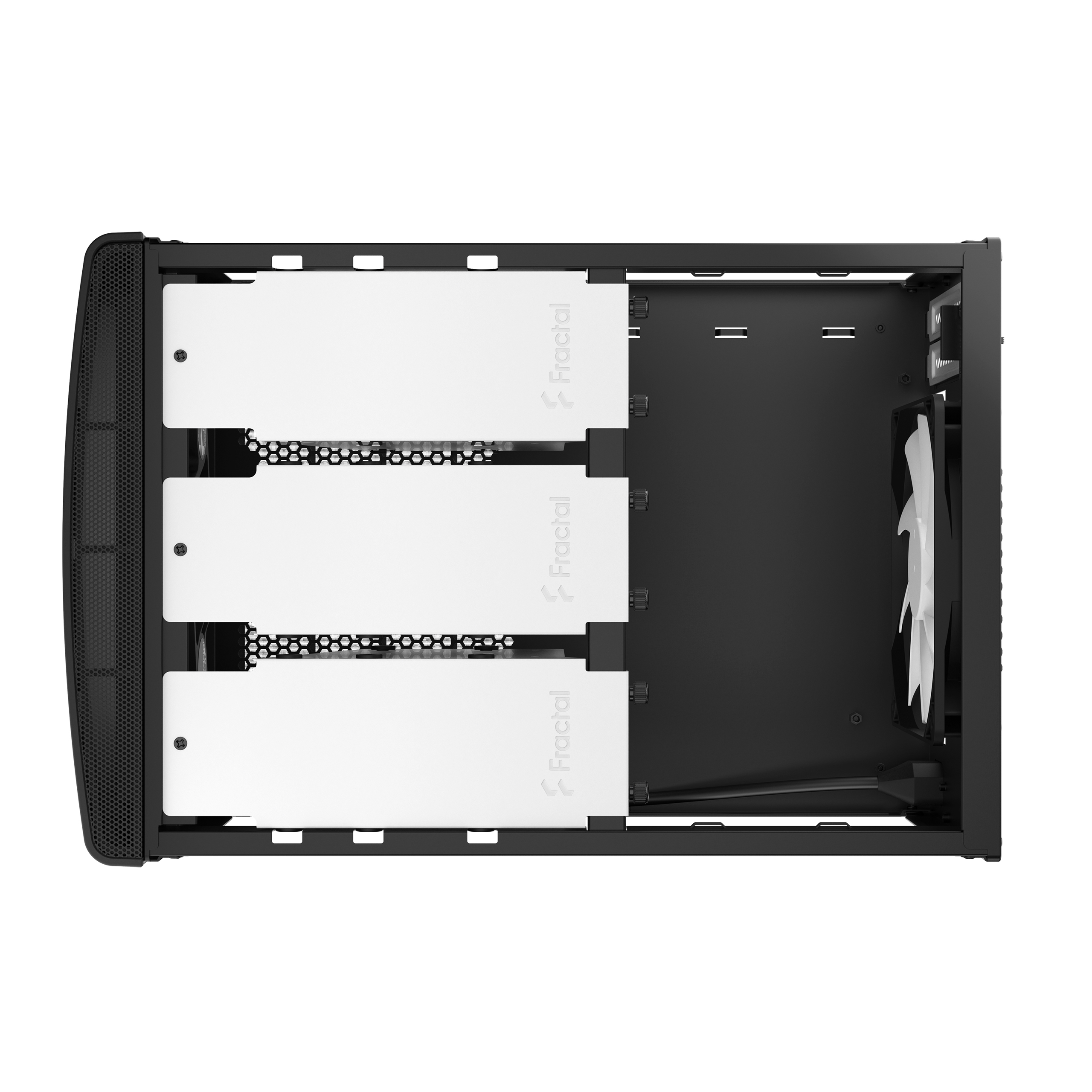

The Node 304 accommodates up to six hard drives. Unused mounting brackets can be removed in favor of long graphic cards, additional airflow or more space for organizing cables. Additionally, it is equipped with three hydraulic bearing fans, easy-to-clean air filters in all intakes and two front USB 3.0 ports.

  • Compact, modular interior in a minimalistic design with an elegant aluminum front panel

  • Unique new modular mounting system that accommodates up to 6 hard drives

  • Accommodates tower CPU coolers and single-fan water cooling systems

  • Filtered air intakes ensure a dust-free environment for internal components

  • Three Silent Series R2 hydraulic bearing fans and fan-controller included

  • Excellent cooling for all components

  • Accommodates ATX power supplies

  • USB 3.0 for fast file transfers

3x Silent fans

Three Silent Series R2 hydraulic bearing fans included

Dust-free filters

Filtered air intakes ensure a dust-free environment for internal components

USB 3.0 Connectors

USB 3.0 for fast file transfers

Reviews

Language Active language flag
"So if you are in the market for a very compact chassis to house your Mini ITX or DTX motherboard that has flexibility, features and great looks then yeah, the Fractal Design Node 304 should be very high on your shopping list. It is compact, looks great and would make for an excellent file-server thanks to the large amount of HDD space. Pop in a AMD APU based motherboard like we did and boom, you just created yourself a fine Home Theater PC."
Guru3D.com Read the full review
"The build quality is solid and the case is nicely ventilated, plus with the ability for this to be used as a smart looking HTPC and/or a nas unit makes it stand out from the crowd and not only justify its price but also the OC3D Gold award."
Overclock3D.net Read the full review
"For Fractal Design's first attempt at a mini-ITX design, I have the commend them on the Node 304. It is sleek, well-appointed, and won't cost you an arm and a leg to own it."
TweakTown.com Read the full review

Specifications

  • 3.5" / 2.5" HDD / SSD positions
    6
  • Expansion slots
    2
  • Front ports
    2x USB 3.0, 1x 3.5 mm audio in (microphone), 1x 3.5mm audio out (headphone), Power button with LED, HDD LED
  • Total fan mounts
    3
  • Front fan
    2x 92 mm Silent Series R2 hydraulic bearing fans @ 1300 RPM (compatible with 80 mm fans) – included
  • Rear fan
    1x 140 mm Silent Series R2 hydraulic bearing fan, 1,000 RPM speed (compatible with 120 mm fans) – included
  • Dust filters
    Front fans, PSU, GPU

Compatibility

  • Power supply type
    ATX (up to 160 mm in length)
  • Motherboard compatibility
    Mini ITX, Mini DTX (motherboards with SATA ports that are angled 90 degrees may conflict with installation in the case)
  • GPU max length
    310 mm (when 2 HDD slots are removed; graphics cards longer than 170 mm will conflict with PSUs longer than 160 mm)
  • CPU cooler max height
    165 mm
  • Max GPU thickness
    45 mm

Dimensions

  • Case dimensions (W x H x D)
    250 x 210 x 374 mm
  • Volume
    19.2 litres
  • Net weight
    4.9 kg

Other

  • Warranty
    2 Years
  • EAN
    7350041080978
  • UPC
    817301010979
  • Additional information
    Available for System Integrators
  • Product code (Black)
    FD-CA-NODE-304-BL
  • Product code (White)
    FD-CA-NODE-304-WH
